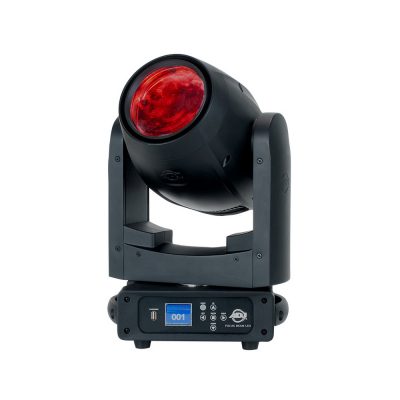

ADJ Focus Beam LED

ADJ Focus Beam LED – 80W LED 5-degree beam

SKU: ADJ Focus Beam LED

Our Price: $1,329.99

Available: Both Online and In Store

Category:
Brand:

Description

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.

The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.



Specifications

Light Source:

• 80W Cool White LED Engine

• 5° Beam Angle

• Color Temperature: 7400K

• 50,000 Hour Average LED Life



Features:

• Control Protocol: DMX & RDM

• DMX Modes: 2 (16 & 18)

• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• Dim Speed control (0.1~10 Seconds)

• Dimming: 0 – 100%

• Strobe & pulse control

• Motorized Focus

• Linear Frost 0-100% (Wash effect)

• 2 Prisms: 6 & 8 Facet, Indexable and Rotatable

• USB firmware update port

• Adjustable LED Refresh Rates (900~25k Hz)

• Adjustable Gamma Settings (1.0-2.8)

• With Wired Digital Communication Network

• Display: Touch display with 5-button touch menu



Color Wheel:

• 13 dichroic colors + white



GOBO Wheel:

• Metal wheel with 15 fixed GOBOs + Open

• GOBO shake effect



Prism Wheel:

• Prism Wheel 1: Rotatable 8-facet Circular

• Prism Wheel 2: Rotatable 6-facet Linear

• Prism Indexing with overlay feature



Control:

• Control Modes: DMX512, RDM & Stand Alone Internal Programs

• 2 DMX Channel Modes: 16 & 18 channels

• 16-Bit Pan, Tilt & Dimmer control

Connections:

• DMX Connections: 3-pin Locking XLR In & Out

• Power Connections: Seetronic Locking Power In & Out

Pan/Tilt:

• Pan & Pan Fine: 630 degrees

• Tilt & Tilt Fine: 270 degrees

Electrical:

• Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)

• Maximum Power Consumption: 136W @ 120V

• Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight:

• Dimensions (LxWxH):  10.96″ x 6.85″ x 17.61″ / 278x174x447mm

• Weight: 27 lbs. (12.25 kg)



What’s Included:

• 2x Omega Brackets

• 1x Seetronic Power Locking Power Cable
