Description

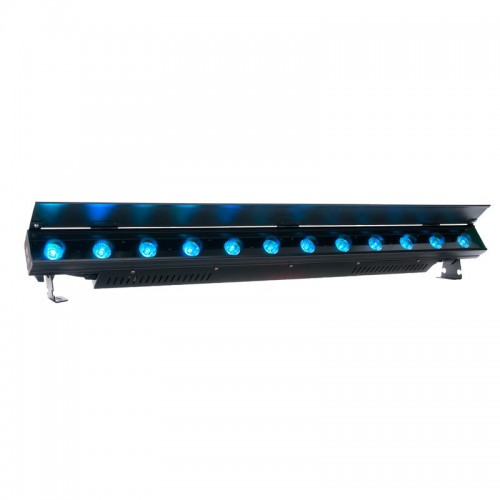

ADJ Ultra Hex Bar 12

The ADJ Ultra HEX Bar 12 is a versatile LED Linear fixture with 12 x 10-Watt, 6-IN-1 HEX LEDs. With a 40-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Bar great for lighting stages and dance floors, but with its patent-pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue.

Also, the ADJ Ultra HEX Bar 12 features include: 5 DMX modes (6, 7, 8, 12, & 36 channel), 6 operational modes, 5 dimming curves, flicker-free operation a 4-Button DMX menu with digital display, plus ADJ’s patent-pending magnetic “Quick Align” end locking allows for a seamless output of light with no breaks of color. Daisy chain up to 7 units together via the fixtures built-in IEC In/Out power connectors.

Specifications:

• Ultra-bright, 40-inch indoor Linear Bar with 12 x 10W Ultra bright HEX (RGBWA + UV: 6-IN-1) LEDs
• Smooth RGBAW + UV color mixing
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• 5 DMX Channel Modes: 6/7/8/12/36 channels
• 6 operational modes: Auto Run, Program Mode, Sound Active, RGBWA + UV Dimmer, Static Color and DMX-512 Mode
• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free operation (No flickering on camera)
• 63 built-in Color Macros
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• 2×8 Character LCD Display
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground
• Compatible with the ADJ RFC remote with RF control up to 30 ft./ 10M (sold separately)
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Light output: 1680 LUX @ 2M; 478 LUX @4 Meters (40-degree beam)
• Power Draw: 90W
• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 7 Ultra Hex Bar 12 fixtures)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power cable length: 1.8 meters (IEC)
• Dimensions (LxWxH): 40.25” x 2.75” x 4.75”/ 1020 x 70 x 122mm
• Weight: 11 lbs./ 4.74kg.
