Description

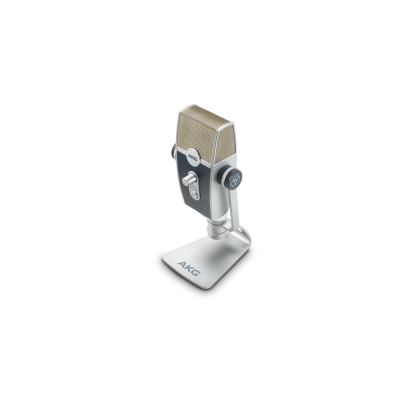

AKG Lyra

Whether you’re podcasting, making YouTube videos, live streaming, or recording your next hit, easily do it all and sound like a pro with the AKG Lyra Ultra HD, multimode USB microphone. For more than 70 years, the world’s greatest recordings and performances have been captured through AKG microphones; now it’s your turn. Simply plug Lyra into your PC, Mac, phone, or tablet and you’re ready to go. System requirements: Windows 8 or higher, Mac OS 10.7 or higher, Android 9 or higher, iOS 10 or higher. iOS support may require Apple Camera Connection Kit, Android support may require an OTG adapter cable, available separately. 24-bit/192kHz maximum audio performance is dependent on the host device and software capabilities.

General Specifications

• Transfer ProtocolUSB 2.0
• Transducer4 proprietary, permanently polarized backplate, condenser capsules
• Capture ModesSelectable; Front, Front & Back, Tight Stereo and Wide Stereo
• Frequency Response20Hz – 20kHz
• Bit Depth / Sample Rate24-bit / 192 kHz
• Maximum SPL129 dB SPL (0.5% THD)
• Power Requirement/Consumption5V USB / 75 mA
• Headphone
  • Impedance 16 ohms
  • Power Output (RMS) 43 mW
  • THD <0.009%
  • Frequency Response 20 Hz – 22kHz
  • S/N Ratio 98.0 dB
• Dimensions
  • Height 247.5 mm (9.72 in.)
  • Width 107.90 mm (4.23 in.)
  • Length 152.50 mm (6 in.)

What’s in the Box

• Lyra Microphone
• 2m (6.6ft) USB cable (USB Type-C to USB type-A)
• Registration card for Ableton Live 10 Lite
• Quick start guide, warranty, safety/regulatory sheet
