Description

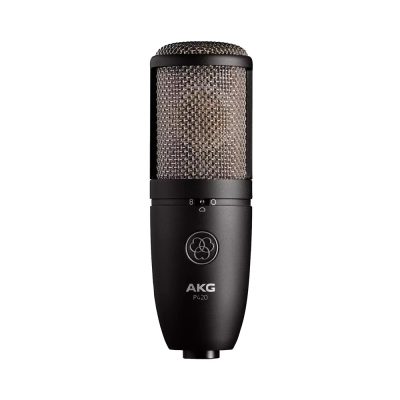

AKG P420

The AKG P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivy and 155dB maximum SPL, the AKG P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

General Specifications

• Audio frequency bandwidth: 20 – 20000 Hz
• Equivalent noise level: 15 dB-A
• Sensitivity: 28 mV/Pa
• Signal to Noise: 79 dB-A
• Pre-attenuation Pad: -20 dB
• Bass cut filter: 300 Hz – 12 dB/octave
• Electrical impedance: <= 200 Ohms
• Recommended load impedance: >= 1000 Ohms
• Polar Patterns: Cardioid, Omnidirectional, and Figure of eight

Dimensions

• Length: 165 mm
• Diameter: 54 mm
• Net Weight: 530 g

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 44 to 52 V
• Current: <= 3 mA

Application

• Project Studio: Yes

Instrument

• Piano / Strings: Yes
• Horns / Woodwinds: Yes
• Drums / Percussion: Yes
