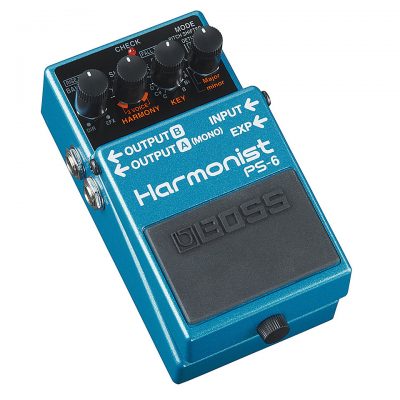

BOSS PS-6 Harmonist – Pitch Shifter Guitar Effects Pedal

• Higher Sound Quality

  The PS-6 is the new-generation pedal for harmony shifting. Sound quality has been improved dramatically thanks to the DSP that is unparalleled in power. With the PS-6, you can render complex harmony voicings beautifully, naturally, and easily.

• 3-Voice Harmony, Detune, and Pitch-Shift

  The PS-6 can generate two or three voices, such as direct/third/fifth, in each of the following modes: Pitch Shifter, Detune, and Harmony. This will add rich depth to your guitar sound. Detune broadens the sound in a natural way, as the PS-6 allows 3-voice detuning with slightly raised and lowered pitch added to the direct signal. Voices can also be pitch-shifted one octave up and a fifth below your note — great for arpeggio-style playing, for example.

• Super Bend

  This amazing effect bends pitch across a 7-octave span, from –3 to +4 octaves! Set the Rise and Fall time to your taste. You can control the bending effect in real time with the pedal’s knob or from an external pedal such as Roland’s EV-5 Expression Pedal (sold separately).

• Easy Operation

  Manipulate a wide variety of effects using simple operations. In Harmony mode, for example, all you have to do is select the key, specify whether it’s major or minor, and use the SHIFT knob to select the voicing you want to use. The Shift knob switches between the different pitch settings available in each mode.

• Road-Tough BOSS

  BOSS compact pedals are world-famous for their great sound as well as their road-tough construction, consistency, and reliability. The PS-6 inherits this BOSS-proven design, offering guitarists a solidly constructed pedal that’s built to withstand decades of demanding use.

• Nominal Input Level-20 dBu
• Input Impedance1 M ohm
• Nominal Output Level-20 dBu
• Output Impedance1 k ohm
• Recommended Load Impedance10 k ohms or greater
• BypassBuffered bypass
• ControlsMODE knob
  KEY/FALL TIME knob
  SHIFT knob
  BALANCE/RISE TIME knob
  Pedal switch
• IndicatorCHECK indicator (Used for indication of check battery)
• ConnectorsINPUT jack: 1/4-inch phone type
  OUTPUT jack A(MONO)/B: 1/4-inch phone type
  EXP jack: TRS 1/4-inch phone type
  DC IN jack
• Power SupplyAlkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
  AC adaptor (PSA series: sold separately)
• Current Draw45 mA
• Expected battery life under continuous useAlkaline: Approx. 8 hours
  Carbon: Approx. 2 hours
  *These figures will vary depending on the actual conditions of use.
• AccessoriesOwner’s manual
  Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
  Dry battery (9 V, 6LR61)
• Options (sold separately)AC adaptor: PSA series
  Expression pedal: Roland EV-5/BOSS EV-30, FV-500H, FV-500L
