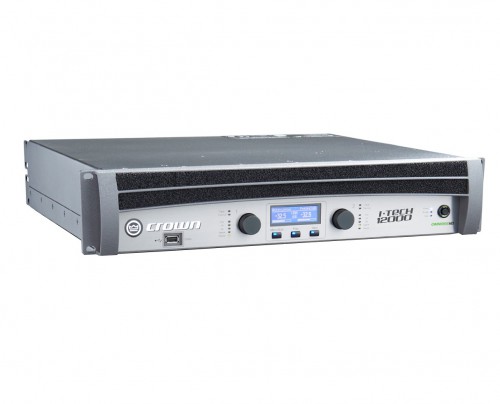

Crown Audio IT12000HD – I-Tech HD Series 4500W/Channel @ 4Ohms Power Amplifier

Description

The Crown Audio IT12000HD is a high-performance power amplifier designed for professional applications. The amplifier has a sleek rackmount enclosure packed with innovative technologies that provide world-class performance and ease-of-use. Patented Class-I circuitry provides efficient use of power to keep current draw low while still providing powerful audio output.

Onboard OmniDrive HD DSP processing is built-in and uses 24-bit/192kHz Cirrus Logic A/D and D/A converters, along with FIR and IIR filters for a high level of audio performance. A front-panel USB port allows you to easily transfer DSP settings from a computer to the amplifier. For connection to virtually any sound system, the amp sports analog and digital XLR inputs and outputs, as well as Speakon and Binding Post outputs. An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware.

The amplifier is kept cool by variable-speed fans with a front-to-back airflow to keep system components running reliably. Other useful features of the amplifier include Sweep Load Monitoring with system-level diagnostics, a bright LCD screen for easy navigation, and a true global power supply, allowing you to operate at full power no matter where you go.

Rackmount Design
The sleek rackmount chassis fits into any standard equipment rack for easy installation
Class-I Circuitry
Patented 5th-generation Class-I circuitry provides terrific efficiency for strong performance with a low power draw
OmniDrive HD DSP
Built-in BSS OmniDrive HD DSP processing and 24-bit/192kHz Cirrus Logic SHARC converters, along with FIR and IIR filters provide ultra-smooth performance
USB
A front-panel USB connector lets you connect a USB drive to quickly transfer DSP settings that were created in a computer
Analog and Digital I/O
The amplifier has analog XLR inputs and outputs, as well as AES/EBU digital XLR inputs and outputs. Speakon and Binding Post outputs are also provided
Ethernet
An Ethernet port supports TCP/IQ, HiQnet, and CobraNet, and is compatible with standard 100Mb Ethernet hardware
Cooling Fans
Front-to-rear cooling fans have true tachometer feedback for precision control of thermal performance
Diagnostics
Sweep Load Monitoring (SLM) technology provides system-level diagnostics
LCD Display
The bright LCD display allows you to quickly set up and monitor the amplifier
Global Power
The global power supply insures your ability to have peak performance anywhere in the world

Features:

– Peak x Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
– Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
– 3 User-defined fan mode controls – normal, early and full speed – for matching fan performance to a specific application
– Peak x Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
– Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
– 3 User-defined fan mode controls – normal, early and full speed – for matching fan performance to a specific application
– New system monitoring provides software visibility of AC line voltage and power supply temperature
– Integrated cast-aluminum handles for easy handling and enhanced durability
– Locking power cord clip provides a secure connection between the amplifier and power cord
– Updated HiQnet Band Manager and System Architect control software
– Increased number of presets to a total of 30; 29 of which are user definable

Specifications:

– Power Rating: 2100W/Channel (8 Ohm Dual)
4500W/Channel (4 Ohm Dual)
3750W/Channel (2 Ohm Dual)
9000W (8 Ohm Bridge)
7500W (4 Ohm Bridge)
– Damping Factor: > 5000
– Input Sensitivity: 1.4 – 7.75V (Adjustable)
– Frequency Response: 20Hz – 20kHz
– Signal-to-Noise Ratio: > 112dB
– Total Harmonic Distortion (THD): < 0.1%
– Input Connectors: 2 x XLR Inputs
1 x AES/EBU Digital XLR Input
1 x USB Port
1 x Ethernet Port
1 x Power Input
– Output Connectors: 2 x XLR Outputs
1 x AES/EBU Digital XLR Output
2 x Speakon Outputs
2 x Binding Post Outputs (4 Posts Total)
– Controls: 1 x Power Switch
2 x Volume Knobs
– Indicators: LEDs for Bridge, Ready, Signal, Clip, Thermal, Fault, Network Data, Power, and AC Mains
– Cooling: Continuously Variable Speed Fans, Front-to-Back Airflow
– Power Requirements: 100-240VAC, 50/60Hz
– Dimensions (WxHxD): 19 x 3.5 x 16.2″ (483 x 89 x 411mm)
– Weight: 28 lbs (12.7kg)
