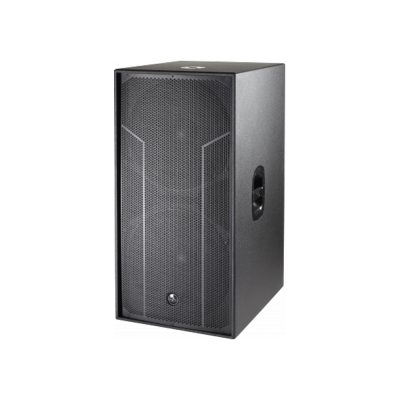

DAS Audio ACTION-S218A-115 – Dual 18″ Powered Subwoofer

Description

The DAS Audio ACTION-S218A is a high-power active subwoofer system that incorporates a 3200 Wpeak amplifier and two 18FW4 speakers with a 3” coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

Features:

Active subwoofer system
3200 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint

Applications:

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

Performance:

Frequency Range (-10 dB) 35 Hz -125 Hz (variable LPF)
Maximum Peak SPL at 1 m 140 dB

Electronics and Connectors:

Nominal Amplifier Power (continuous) 1600 W
Nominal Amplifier Power (peak) 3200 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
Audio Signal Loop Thru Connector 2 x Male XLR
AC Input Connector powerCON NAC3MPA
AC Output Connector powerCON NAC3MPB
Operating Range 90-127 VAC
Current Draw 115 V 6 A

Enclosure:

Enclosure Construction Birch Plywood
Enclosure Geometry Rectangular
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 1.070 x 545 x 675 mm
42,1 x 21,5 x 26,6 in
Net Weight 60,5 kg ( 133,4 lb )

Components:

LF Driver 18FW4

Shipping:

Carton Dimensions ( H x W x D ) 1.145 x 595 x 722 mm
45,1 x 23,4 x 28,4 in
Shipping Weight 65,0 kg ( 143,3 lb )
