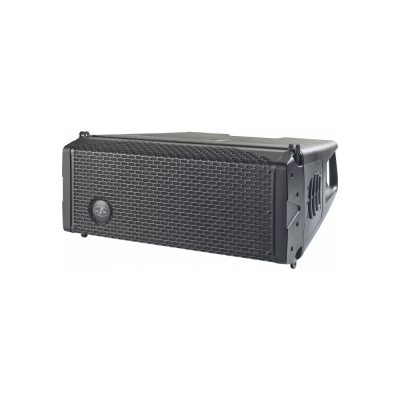

DAS Audio EVENT-26A – 2-Way Powered Line Array Element

Description

The DAS Audio EVENT-26A is a symmetrical, ultra-compact, two-way powered line array system. Designed by DAS engineers to deliver stunning performance and exceptional ease-of-use, the stylish polypropylene cabinet design offers a highly portable and road-worthy system. A comprehensive range of accessories makes the EVENT-26A ideal for small to mid-size rental and installation applications.

The DAS Audio EVENT-26A combines two 6.5″ transducers and a single M-60 compression driver in a rugged yet lightweight polymer cabinet. The symmetric “V” shaped configuration of the cone transducers provides consistent 100º of horizontal coverage down to 200 Hz. The M-60 compression driver is coupled to an advanced waveguide design that provides control of the vertical dispersion as well as precise coupling between units when used in vertical arrays.

Powered by a two-channel Class D amplifier providing 800 Wpeak power, the amp´s rear panel includes quality Neutrik® XLR and powerCON connectors. The DAScontrolTM interface makes the preset selection for the number of units in the array both fast and simple. An onboard DSP featuring a 24-bit high-end processor handles X-over, EQ, delay, and limiter functions. The powerful FIR filtering technology incorporated in the EVENT-26A offers constant phase response which translates to transparent sound and exceptional clarity, improving the listening experience.

Streamlined deployment of EVENT-26A arrays is possible thanks to the innovative FSSTM (Fast Set Splay) rigging system developed to permit angle selection while stacked on dollies. The stainless-steel rigging hardware allows flown arrays of up to 16 units in 1º steps from 0º to 10º.
Low-frequency reinforcement for the EVENT-26A is provided by its flyable companion subwoofer the EVENT-115A.

Features:

Ultra-compact, lightweight powered line array
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrolTM
High-end 24-bit DSP with LCD screen
FIR processing for constant phase response
FSSTM Fast Set Splay rigging for quick deployment

Applications:

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

Performance:
Frequency Range (-10 dB) 76 Hz – 19 kHz
Horizontal Coverage (-6 dB) 100º
Vertical Coverage Splay Dependent
Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors:

Nominal Amplifier Power (continuous) 400 W
Nominal Amplifier Power (peak) 800 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 6.2 V (+18 dBu)
Audio Signal Input Connector 1 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
AC Input Connector powerCON NAC3MPA
AC Output Connector powerCON NAC3MPB
Operating Range 90-127/180-250 VAC
Current Draw 115 V 1.6 A
Current Draw 230 V 0.8 A

Enclosure:

Enclosure Construction Polypropylene
Enclosure Geometry Trapezoidal
Rigging Captive Rigging System
Color Black
IP Rating IP43
Dimensions ( H x W x D ) 225 x 480 x 485 mm
8,9 x 18,9 x 19,1 in
Net Weight 16,5 kg ( 36,4 lb )

Components:

LF Driver 6MI
HF Driver M-60

Shipping:

Carton Dimensions ( H x W x D ) 565 x 565 x 290 mm
22,2 x 22,2 x 11,4 in
