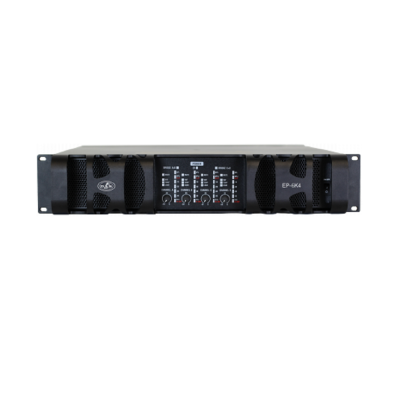

E11even Sound EP-6k4 – 4 Channel High Power Amplifier by DAS Audio
SKU: EP-6k4
-
Limited Edition E11even Sound Badged Amplifiers
Our Price:
Special Order
Description
The EP Series EP-6K4 offers 1200 W per channel at four ohms. The amplifiers also offer operation in bridge mode.
The rear panel incorporates switches for changing the gain and selection between standard and bridge modes. Input and output connections are made through XLR connectors. The EP-6K4 is housed in a rugged 2-unit high steel chassis.
Features
4 channel high power amplifier
Switching power supply
Switching amplification
Integrated voltage limiters
Thermal and current protection
Short-circuit protection
Standard and Bridge modes
Applications
House of worship / Corporate A/V
Theatres, auditoria and performing arts centers
Live music clubs
Live sound touring/Rental services
Output Power Ratings |
|
| Power 8 Ohms, Both Channels Driven | 4 x 625 W |
| Power 8 Ohms Bridged | 2 x 2500 W |
| Power 4 Ohms, Both Channels Driven | 4 x 1250 W |
| Electronics and Connectors | |
| Amplifier Channels | 4 |
| Output Circuitry | Switched Amplification |
| Frequency Response | 10 Hz-30 kHz |
| Voltage gain | 23 – 44 dB (Rear DIPs adjustable) |
| Controls | Power On/Off, Gain Pots, Rear DIP Switches |
| Cooling | Front-to-Back |
| Amplifier Protections | Thermal, Overload, Short Circuit, Over Current |
| LED Indicators | Independent Channel Meters, Clip/VPL, Temp, Mute, VHF, On |
| Audio Signal Input Connector | 4 x Balanced Neutrik XLR |
| Speaker Output Connector | 4 x Neutrik NL4 |
| Current Draw 230 V / 115 V | -/ 15 A |
| Dimensions-Weight | |
| Dimensions ( H x W x D ) | 95 x 483 x 415 mm 3,8 x 19,0 x 16,3 in |
| Net Weight | 12,0 kg ( 26,4 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 190 x 525 x 570 mm 6,7 x 20,7 x 22,4 in |
| Shipping Weight | 13,0 kg ( 28,7 lb ) |
