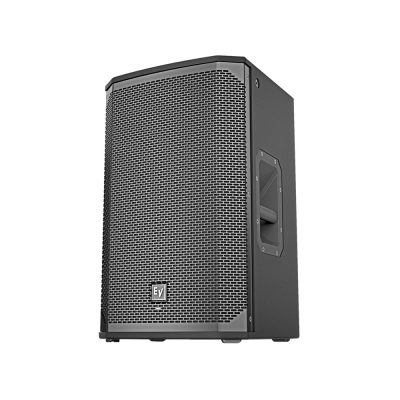

Electro-Voice EKX-12P

The Electro-Voice EKX-12P is a 12-Inch 2-Way 1500-Watt Powered Loudspeaker.

Description

• QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications

• Connector Type
  • (1) Stereo RCA input,
  • (2) XLR/TRS combo jack
  • (1) XLR link output
• Coverage (Nominal -6 dB)
  • H 90 °
  • V 60 °
• Crossover Frequency
  • 1.7 k Hz
• Enclosure Material
  • 15 mm, plywood with EVCoat
• Frequency Response
  • (-10 dB) 50 Hz – 20 kHz Hz Full space measurement using the music DSP preset.
  • (-3 dB) 60 Hz – 18 kHz Hz Full space measurement using the music DSP preset.
• Grill 18 AWG steel with powder coat
• HF Transducer
  • DH-1M 1-inch titanium compression driver
• LF Transducer
  • EVS-12M 300 mm (12 in)
• Maximum
  • SPL 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• Power Consumption
  • 1.8 A Current rating is 1/8 power
• Power Rating
  • 1500 W
• Shipping Weight
  • 22.9 kg (50.49 lbs)
• Suspension
  • (8) M10 threaded mounting points
• Height
  • 14RU 607 mm (23.9″)
• Width
  • 375 mm (14.76″)
• Depth
  • 356 mm (14.02″)
• Weight
  • Net 18.8 kg (41.45 lbs)
