Description

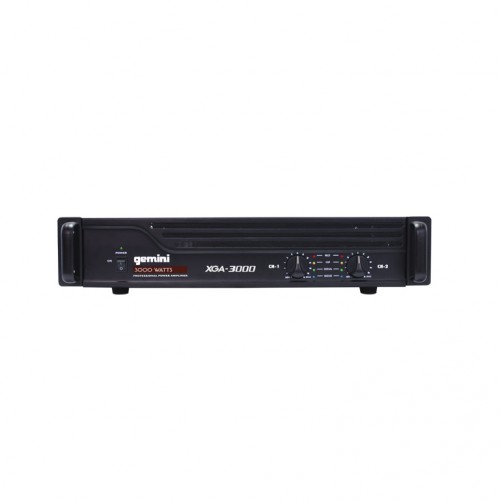

Gemini XGA-3000

The Gemini XGA-3000 amplifier offers clean, reliable power in a durable, lightweight enclosure. If you demand professional amplification performance, the XGA-3000 is perfect for delivering pure, consistent wattage night after night.

With 3000 watts of Instant Peak Power (400 watts RMS), the Gemini XGA-3000 is ideal for powering PA systems and DJ rigs. To ensure seamless, reliable performance, the amp features front-to-rear airflow and a cooling fan for thermal stability, DC output protection and short circuit protection.

For true connecting convenience, the XGA-3000 boasts XLR and ¼-inch balanced inputs and three Speakon outputs. The unit also provides front panel indicators for Signal, Clip, Protect and Bridge, plus level controls for channels 1 and 2. Selectable modes for Stereo and Mono Bridge give you even more flexibility, while its sleek, lightweight design ensures total portability.

With clean, dependable power in a resilient, 19-pound enclosure, the XGA-3000 offers unmatched value for anyone who is serious about sound.

Features

• 3000 Watt IPP* High Power output to drive professional loudspeakers without clipping
• Front-to-rear airflow and cooling fan for thermal stability and reliability
• XLR and ¼” (6.5mm Jack) balanced
• Stereo and Mono Bridge
• Constant speed fan for low noise
• Comprehensive front panel indicators including signal, clip, protect and bridge
• 3 Speakon outputs for Channels A/B/Bridge
• 5-way binding banana plug channel outputs
• Bridge control switch
• DC output protection and Short circuit protection
• Frequency response 10Hz – 50kHz at 1.5 dB
• Ground lift switch
• Total Harmonic Distortion: Less than 0.1%
• Input sensitivity & Impedance: 0.77v
• Signal to Noise (20 Hz – 20 kHz) > 95dB

Specifications

• Frequency Response: 10Hz ~ 50kHz ±1.5dB
• Signal to Noise (LF / HF): >90dB
• THD (LF / HF): > 0.1%
• Input Sensitivity: 0.77v
• Maximum Input Level: 21dBv/9v
• Damping Factor (F=1kHz 8Ω): >350
• Input Impedance: 20K Ω
• Fuse 5mm x 20mm: AC 115v/230v 50~60Hz
• Output Stereo 8 Ω: 2 x 150W RMS
• Output Stereo 4 Ω: 2 x 200W RMS
• Output Bridged 8 Ω: 400W RMS
• Dimensions (WxDxH): 19” x 13.8” x 3.5”
• (482mm x 350mm x 88mm)
• Net Weight: 19 lbs (8.6 kg)
