Description

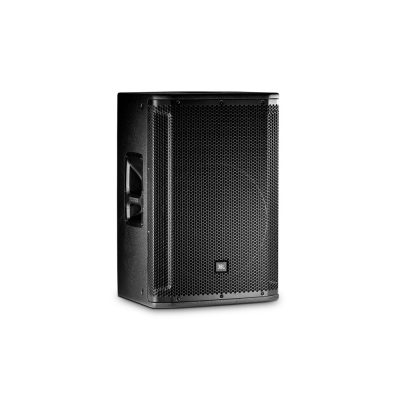

JBL SRX815

The JBL SRX815 is a two-way full-range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities, or houses of worship. Tunings and presets are available for Crown ITech HD.

Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 41Hz-20kHz
• Frequency Response: 56Hz-20kHz
• Max SPL: 130dB (Peak)
• Coverage Pattern: 90 x 50
• Amplification options: Passive/Bi-Amp

Applications

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

Specifications

• System Type Passive 15”, two-way, bass-reflex
• Maximum SPL Output 124dB (Continuous), 130dB (Peak)
• Frequency Response (-10dB) 41hz – 20khz
• Frequency Response (-3 dB) 56hz – 20khz
• Sensitivity 95dB
• System Power Rating 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance 8 Ohm
• Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive/Bi-Amp
  • LF Driver 2275H
  • HF Driver 2432H
• Coverage Pattern 90 x 50
• Crossover Frequency 1.9khz
• Enclosure 18mm Duraflex coated plywood
• Monitor Angle 50°
• Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
• Handles 3
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (H x W x D) 478mm x 458mm x 691mm (18.82in x 18.03in x 27.20in
• Weight 57.0 lbs (25.9kg)
• Shipping Weight 67.0 lbs (30.4kg)
