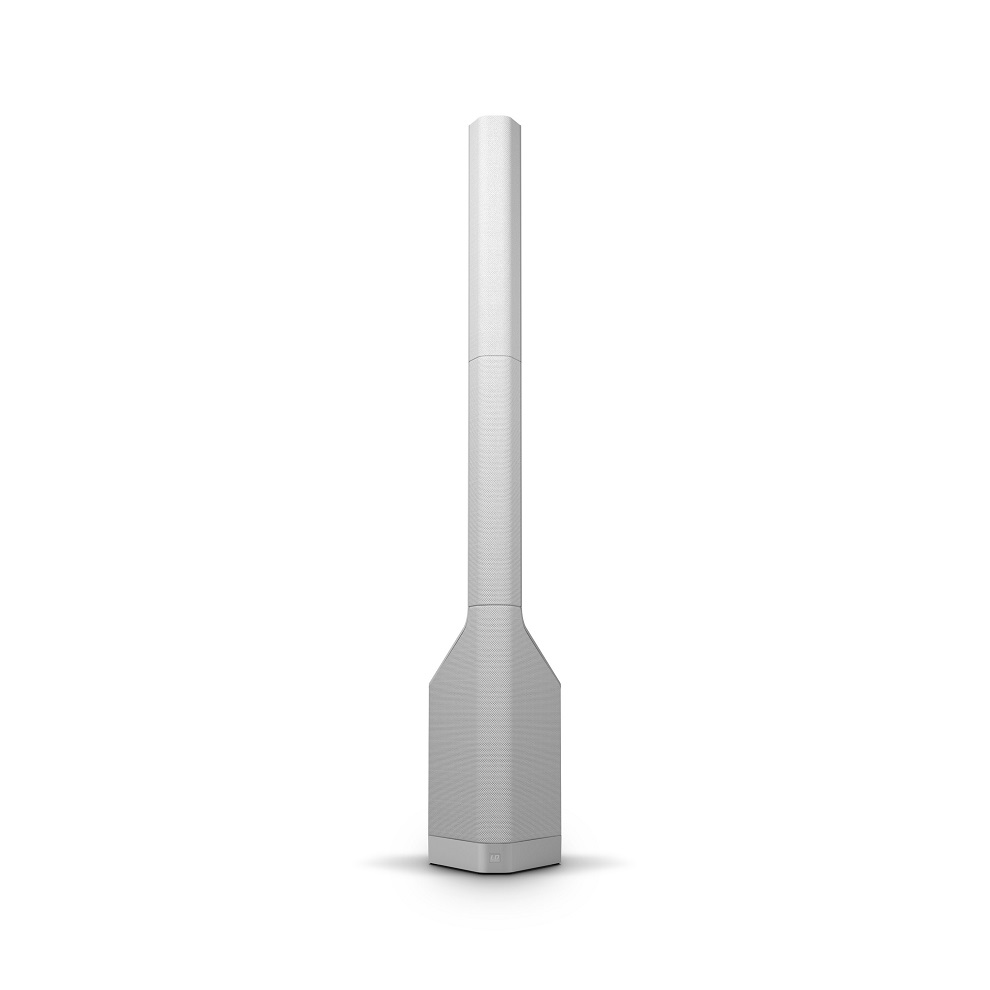

LD Systems MAUI P900 W – Porsche Design Studio Powered Column PA (Cocoon White)



Our Price: $3,999.99

Special Order

Out of stock


LD Systems MAUI P900

LD Systems MAUI P900

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

The LD Systems MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 40 m (130 ft.) distance between left and right channel systems.

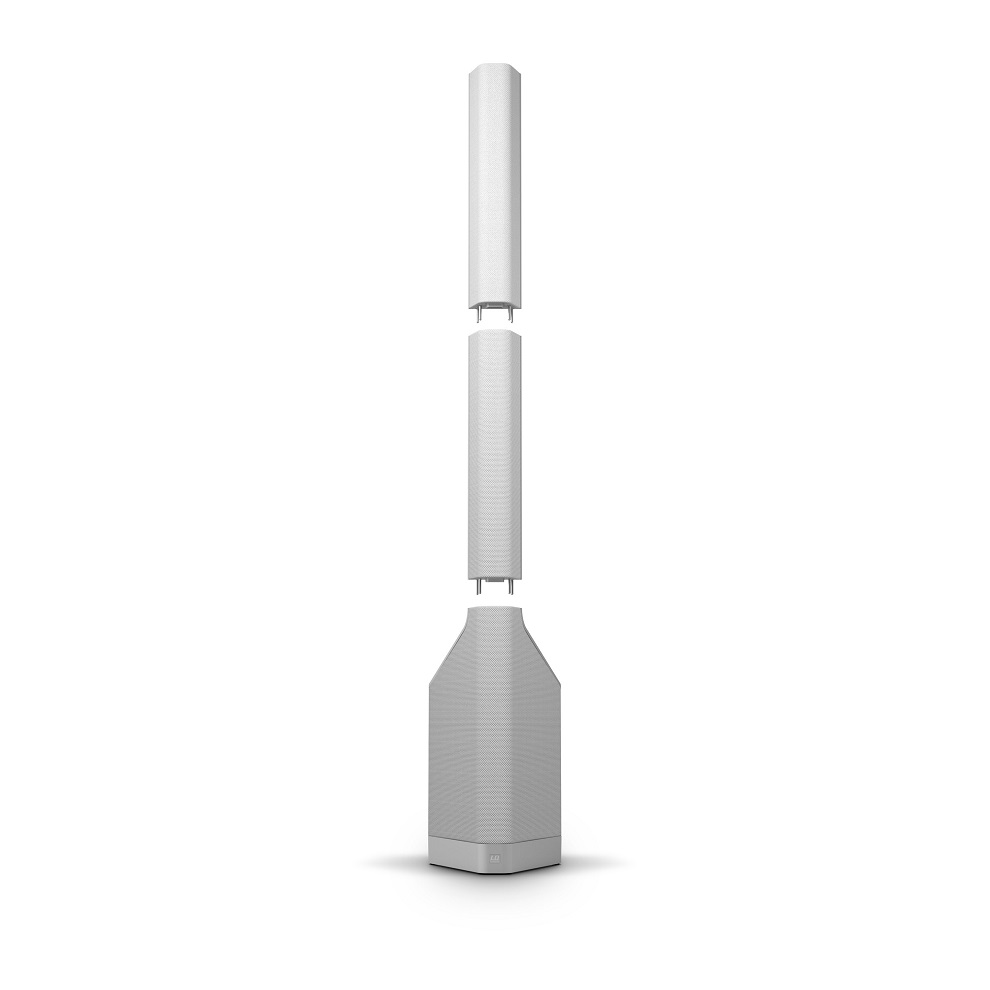

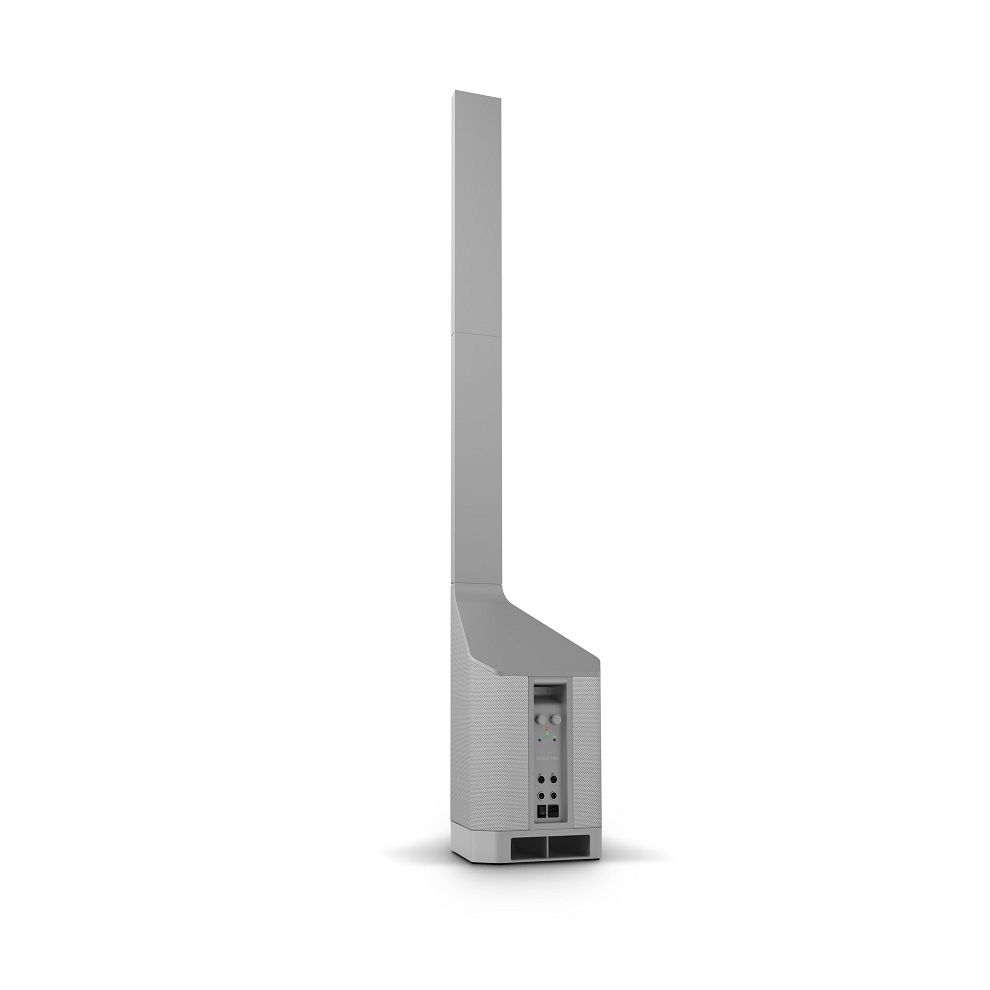

Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.

Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.

To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.



  • Powered column PA system for live events and install

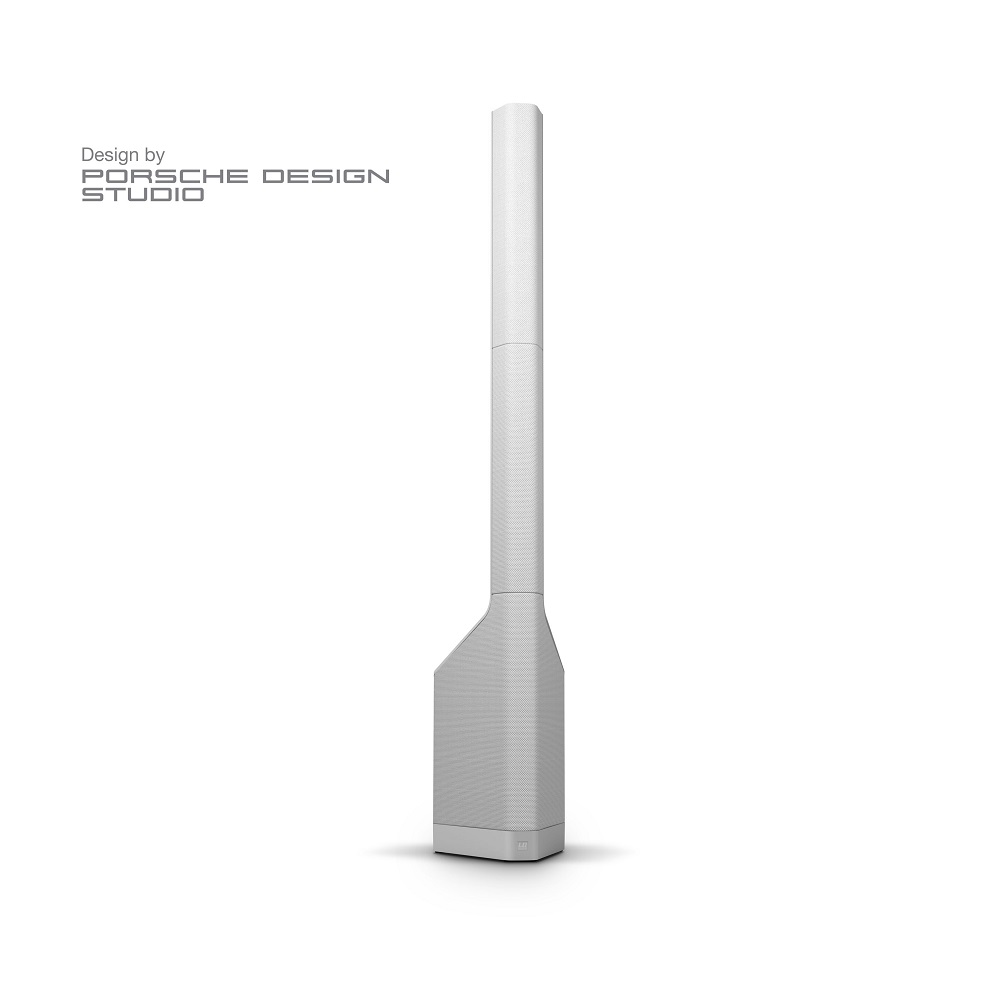

  • Award-winning design by Porsche Design Studio
  • Durable aluminium body
  • 1,400 watts RMS system power and 131 dB maximum SPL
  • 50 premium transducers for monumental clarity
  • SonicGuide® and WaveAhead® technology for coherent wavefront
  • DynX® DSP for distortion free sound
  • aptX™ and AAC coding for HD Bluetooth® streaming
  • TrueWireless Stereo™ for wireless stereo pairing
  • Cocoon White
Product type
PA Complete Systems


Max. SPL (continuous)
121 dB

Max. SPL (peak)
131 dB

Frequency response
42 – 20.000 Hz

Dispersion (H x V)
140 x 15 °

Total Height
2173 mm

46 kg

Bluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application


Woofer dimensions
2 x 10 “

Woofer size
2 x 254 mm

Woofer magnet

Woofer brand

Woofer voice coil
3 “

Woofer voice coil (mm)
76.2 mm

Cabinet construction

Housing material
15 mm Plywood

Cabinet surface
HD coated aluminum , multi layer mesh (cloth)

Dimensions Subwoofer (W x H x D)
400 x 745 x 470 mm

Subwoofer weight
30.6 kg

Mid/Hi System

Midrange size
16 x 2.8 “

Midrange size
16 x 71,1 mm

Midrange magnet

Midrange brand

Midrange voice coil
0.75 “

Midrange voice coil
20 mm

Tweeter dimensions
32 x 1 “

Tweeter dimensions (mm)
25.4 mm

Tweeter magnet

Tweeter brand

Tweeter voice coil
1 “

Tweeter voice coil (mm)
25.4 mm

Wave Guide
SonicGuide® Technology

MF / HF Transducer Arrangement
Patented WaveAhead® Technology

Loudspeaker inputs

Speaker input connections

Cabinet construction mid/high

Mid/Hi system cabinet material

Mid/Hi system cabinet surface
HD coated aluminum , multi layer mesh (cloth)

Mid/Hi system width
157 mm

Mid/Hi system height
1428 (2 x 714) mm

Mid/Hi system depth
91 mm

Mid/Hi system weight
2 x 7.7 kg

Amplifier module (integrated in subwoofer)

3 x class D

System output (RMS):
1400 W

System output (Peak)
2800 W

Protection circuits
DC protection , Multiband limiter , short circuit , thermal protection


Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Main level , Power On/Off , Sub level

Bluetooth , Bluetooth STEREO LINK , Limit , Power , Protect (protection circuit engaged) , Signal

Mains connector
IEC power cable (included)

Operating voltage
100 V AC – 120 V AC, 50 – 60 Hz , 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion) , Switching power supply

Power Consumption (On / Off / Max.)
0 W / 11 W / 1000 W

Ambient Temperatur (operating)
0 – 40 °C

Relative Humidity:
10 % – 80 %

Line Inputs
1 x stereo

Line Input Connectors
Neutrik XLR

Line Outputs
1 x Stereo Thru

Line Output Connectors
Neutrik XLR

Number of speaker outputs

Loudspeaker Output Connectors
Custom-made multipin

Bluetooth Standard

Bluetooth Audio Decoder
AAC , aptX , SBC

DSP characteristics

Bit depth AD/DA converter
24 bit

Sampling frequency
48 kHz

Signal-to-noise ratio
106 dB
