Description

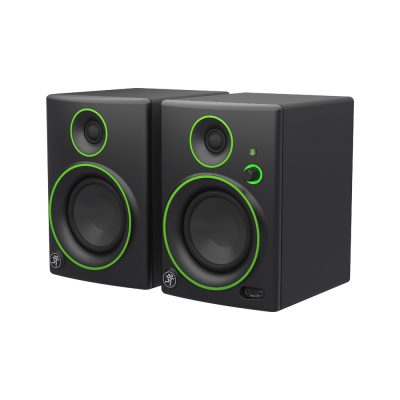

Mackie CR4BT

The CR4BT joins the CR3 and CR4, all designed to bridge the gap between professional and personal appications. All CR monitors ultilize 3/4? silk-dome tweeters for smooth, articulate highs. Unique to the line, a left/right speaker placement switch allows users to locate the volume control on the left or right of their workstation. The front panel includes a on/off/volume knob with a lit power indication ring that will also control the volume of headphones, which can be plugged directly into the front of the monitors. This model features a front panel Bluetooth button for easy pairing and connection indication. Bluetooth streaming is great for comparing mixes, auditioning files or just enjoying a bit of music or video.

Connections

• Connector Type
  • Audio line-in
    • Mini-phone stereo 3.5 mm
    • Phone mono 6.3 mm x 2
    • RCA x 2
    • Headphones (mini-phone stereo 3.5 mm)

Dimensions & Weight

• Weight
  • 11.9 lbs
• Dimensions (WxDxH) / Weight Details
  • Speaker: 6.1 in x 7.3 in x 8.8 in

General

• Features
  • Bass Reflex
• Enclosure Color
  • Black
• Enclosure Material
  • MDF
• Design Features
  • Vinyl wrapped

Miscellaneous

• Included Accessories
• Speaker cable, 3.5 mm to RCAx2 cable

Power

• Power Source
  • AC power adapter
• Power Consumption Operational
  • 72 Watt

Speaker System

• System Components
  • 2 speakers
• Speaker Type
  • 2-way – active
• Nominal Output Power (Total)
  • 28 Watt
• Max (RMS) Output Power (Total)
  • 50 Watt
• Frequency Response
  • 70 – 20000 Hz
• Nominal Impedance
  • 10/20 kOhm
• Output Level (SPL)
  • 100 dB
• Crossover Frequency
  • 3000Hz
• Amplifier
  • Integrated
• Audio Amplifier Output Power
  • Continuous: 28W, Peak: 50W – Amplifier Class A-B
• Interfaces
  • Bluetooth 3.0
• Controls
  • Power on/off, volume, left/right speaker position switch

Speaker System Details

• Driver Details
  • Speaker: woofer driver – 4″ – polypropylene Speaker: tweeter driver – 0.75″ – silk – Ferro-fluid cooled
