Description

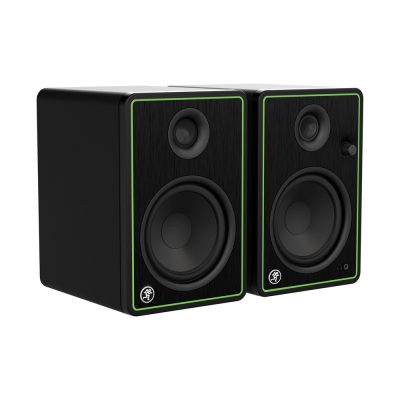

Mackie CR5-XBT

Mackie CR Series Creative Reference multimedia monitors offer studio-quality sound with cosmetics that complement any desk whether you’re making music, creating content, or just relaxing to your favorite tunes. CR5-XBT 5″ monitors with Bluetooth feature a sleek design with a brushed-metal panel and a distinct outline. Convenient front-panel headphone out and volume control make daily use easy. Flexible rear-panel inputs include balanced 1/4″ TRS inputs, 1/8″ Stereo, and RCA. High-quality cables are included in the box to get you up and running quickly. Upgrade your listening experience with Mackie CR5-XBT monitors with Bluetooth.

Mackie CR5-XBT Specs

Studio Monitor

• Monitor Type Active 2-Way
• Enclosure Bass-Reflex
• Power Rating 80 W Peak
• Drivers LF Driver: 1 x 5″ / 12.7 cm Polypropylene Cone
• HF Driver: 1 x 0.75″ / 1.91 cm Silk Dome
• Amplification 1 x Full-Range Amplifier: Class-D80 W Peak

Performance

• Frequency Range 50 Hz to 20 kHz (at -10 dB)
• 69 Hz to 20 kHz (at -3 dB)
• Maximum Sound Pressure Level (SPL) 105 dB
• Phase Adjustment None

Crossover

• Crossover Frequency 3 kHz

Connectivity

• Audio I/O 2 x 1/4″ TRS Balanced/Unbalanced Female Analog Input
• 2RCA Unbalanced Female Analog Input
• 1 x 1/8″ / 3.5 mm TRS Unbalanced Female Analog Input
• 2 x Push Terminal Unbalanced Female Analog Output
• 1 x 1/8″ / 3.5 mm TRS Unbalanced Female Analog Output

Power

• AC Input Power 100 to 240 VAC, 50/60 Hz
• Power Consumption 80 W

Environmental

• Operating Temperature 32 to 104°F / 0 to 40°C

General

• Enclosure Material MDF
• Mounting Points None
• Dimensions (W x H x D) 6.9 x 10.2 x 9.3″ / 17.5 x 25.9 x 23.6 cm (Each)
• Weight 14.9 lb / 6.8 kg (Pair)

Packaging Info

• Package Weight 17.02 lb
• Box Dimensions (LxWxH) 18.5 x 12.9 x 11.3″
