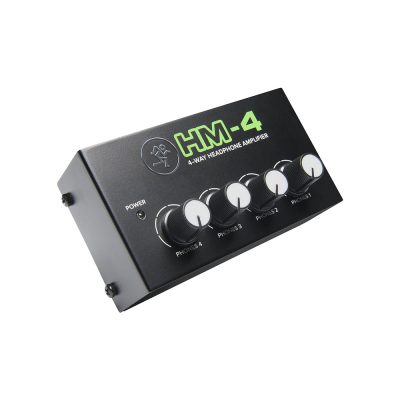

Mackie HM-4

The ultra-compact HM-4 4-Way Headphone Amplifier features a 1/4″ stereo input and four 1/4″ headphone outputs with individual level controls. Perfect for studios or even at home when up to four people want to listen together.

The ultra-compact HM-4 offers a simple yet effective way to split a single stereo signal out into four pairs of headphones. Perfect for quickly splitting a headphone mix in the studio or even crowding around a tablet to watch a movie at home. Making this not only a go-to for the studio, but a go-to for every environment. Ultra-Flexible: This small little box contains a simple, yet effective way to split a single stereo signal out to four pairs of headphones to robust headphone distribution. This Box is built for any environment that needs a headphone amplifier with individual levels for each of the 4 headphones amplifiers.

Features

• Distribute a stereo input signal to up to four pairs of headphones
• Ideal for musicians in-home and studio recording sessions
• One unbalanced 1/4″ TRS stereo input
• Four unbalanced 1/4″ TRS stereo headphone outputs
• Dedicated per-output level control allows each person to set a different listening volume

Specifications

Audio Performance

• Maximum Level (1/4″ Input) +22dB

Input/Output

• Input Type Female 1/4″ Phono, unbalanced, stereo
• Input Impendnance 10k Ohms each channel, unbalanced
• Output Type 4x Female 1/4″ Phono, unbalanced, stereo
• Output impendance 47 Ohms each channel, unbalanced
• Level Control 4x Rotating Phones Knobs

Power Requirements

• Current Draw +12v DC / <220 mA, Maximum

Safety Features

• Display LEDs Top Power on/off

Physical Properties

• Height 2.0 in / 51mm
• Width 4.3 in / 109mm
• Depth 2.3 in / 58mm
• Weight 0.5 lb / 0.2 Kg
