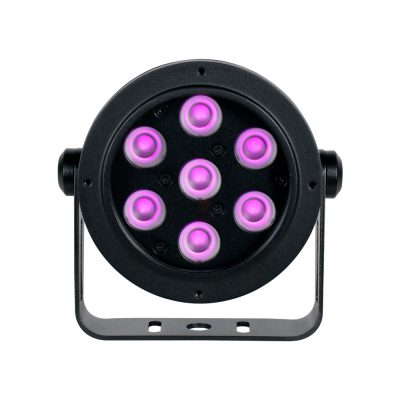

Magmatic PRISMA MINI PAR 20 – IP Rated UV wash luminaire

SKU: PRISMA MINI PAR 20

-

IP65 Rated Exterior High-Power UV Wash Par Luminaire

Our Price: $225.00

Out of stock

Description

Magmatic PRISMA MINI PAR 20™ is is an IP65 rated exterior UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.
Powered by the PRISMA DRIVER 8™, features include an adjustable mounting yoke, a durable aluminum housing, and a 6 ft (1.8m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.

Features:

IP65 Rated Exterior High-Power UV Wash Par Luminaire
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
Zero Visible Light Output
IP Rated Power/Data Pigtail Cable Attached

Specifications:

SOURCE

(7) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes
CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke
CONTROL
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support
CONNECTIONS
6 ft (1.8m) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 5.66 in. (144mm)
Width: 2.76 in. (70.15mm)
Vertical Height: 5.6 in. (143.16mm)
Weight: 2.0 lbs. (0.9kg)
ELECTRICAL
AC100-240V 50-60Hz
19W Max Power Consumption
THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled
APPROVALS / RATINGS
CE | cETLus | IP65
