Description

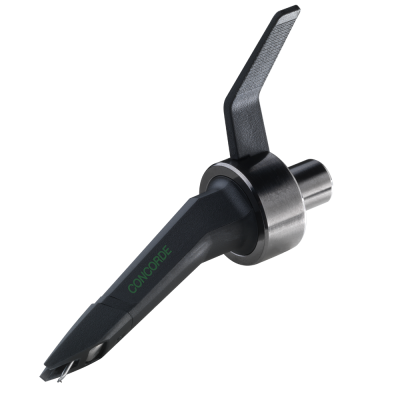

Ortofon Concorde MkII Mix

The Ortofon Concorde MkII MIX is a general-purpose model for scratch and back-cueing

Features:

• Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
• It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Excellent price-to-performance ratio.

Specifications:

• Stylus Type: Spherical
• Tracking Force: 3.0 g
• Output Voltage: 6 mV
• Frequency Range: 20-20.000 Hz

Technical Data:

• Output voltage at 1000Hz, 5cm/sec. – 6 mV
• Channel
  • Balance at 1kHz – 1,5 dB
  • Separation at
    • 1kHz – 20 dB
    • 15 kHz – 15 dB
• Frequency range at -3dB – 20-20.000 Hz
• Tracking ability at 315 Hz at recommended tracking force – 100 μm
• Compliance, dynamic lateral – 14 μm/m N
• Stylus type – Spherical R 18 μm
• Tracking force range – 2 – 4 g
• Tracking force recommended – 3 g
• Cartridge weight – 18,5 g
• Replacement stylus unit – MIX
