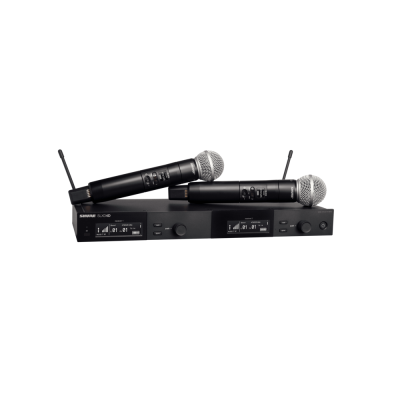

Shure SLXD24D/SM58 – Dual-Channel Digital Wireless Handheld Microphone System with SM58 Capsules
SKU: SLXD24D/SM58-
Our Price: $1,379.00
Available on backorder
Description
Shure SLXD24D/SM58
Featuring two legendary SM58® Cardioid Dynamic Microphone capsules on SLXD2 handheld wireless transmitters, the SLXD24D/SM58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
PRODUCT DETAILS
The SLXD24D/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4D dual-channel receiver and two SLXD2/SM58 handheld transmitters with antenna and rackmount accessories and 4 AA batteries.
SPECIFICATIONS
System
- Wireless Transmission
- Digital UHF
- Number of RF Channels
- 1760
- Included Transmitters
- 2 x Handheld
- Diversity
- True Digital Diversity
- RF Frequency Band
- H55:
- 514 to 558 MHz
- H55:
- RF Bandwidth
- 44 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328′ / 100 m
- Max Systems per Setup
- 32
- Sample Rate/Resolution
- 24-Bit
- Latency
- 3.2 ms
- Dynamic Range
- 120 dBA (Typical)
- Encryption
- None
Receiver
- Form Factor
- Rackmount
- Mounting Options
- Rackmount (with Included Hardware)
- Rackmount Size
- 1 RU (Full Rack)
- Antenna
- 2 x 1/4 Wave External, BNC (Rear-Mount)
- Number of Audio Channels
- 2
- Audio I/O
- 2 x XLR 3-Pin Male Balanced Mic/Line Output
- 2 x 1/4″ TRS Female Balanced Output (Lockable)
- Gain Range
- 0 to +21 dB (3 dB Steps)
- Pad
- 30 dB
- Audio Output Level
- -18 to +42 dB (Balanced, Unbalanced)
- Phantom Power Protection On
- 1/4″, XLR Outputs
- Frequency Response
- 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)
- Network I/O
- 1 x RJ45 (10/100 Mb/s)
- Network Protocols
- DHCP, Manual IP
- Impedance
- 1/4″ Output:
- 1.3 Kilohms (Balanced)
- 670 Ohms (Unbalanced)
- XLR Output:
- 400 Ohms (Balanced)
- 150 Ohms (Balanced)
- 1/4″ Output:
- Adjacent Channel Isolation
- >70 dB
- Spurious Rejection:
- >75 dB
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 15 VDC at 600 mA, Center-Positive (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Display & Indicators
- LCD (AF Level, Channel, Group, RF Level, Transmitter Battery Status)
- Housing
- Steel
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
- Dimensions 15.5 x 1.7 x 6″ / 393 x 42 x 152 mm
- Weight 3.1 lb / 1.4 kg (without Antenna)
Transmitter
- Form Factor
- Handheld
- RF Output Power
- 1 / 10 mW
- Audio I/O
- None
- Pad
- None
- Muting
- None
- Audio Input Level
- 8.2 dBV
- Auto-Level Control
- No
- Gain Range
- 0 +21 dB
- Signal Processing
- None
- Frequency Response
- 20 Hz to 20 kHz (Dependent on Mic)
- Sync Method
- IR
- Antenna
- Internal Single-Band Helical
- Power Requirements
- Battery
- Battery Type 2 x AA (Included)
- 1 x Shure SB 903 (Not Included)
- Battery
- Battery Charging Time
- 1.25 to 5.5 Hours
- Approx. Battery Life
- 8 Hours (Lithium Shure SB903)
- 8 hours (Alkaline)
- USB/Lightning Connectivity
- None
- Display & Indicators
- LCD (Battery Status, Channel, Group, Power)
- Housing
- Aluminum
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
- Dimensions
- 1.5 x 0.3″ / 37.1 x 6.9 mm
- Weight
- 5.2 oz / 147 g
Microphone
- Form Factor
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Dynamic
- Polar Pattern
- Cardioid
- Frequency Range
- 50 Hz to 15 kHz
- Sensitivity
- -54.5 dBV/Pa
- CMRR
- None
- Diameter
- 1.97″ / 50 mm
Packaging Info
- Package Weight 9.71 lb
- Box Dimensions (LxWxH) 18.1 x 13.9 x 4.5″
