Description

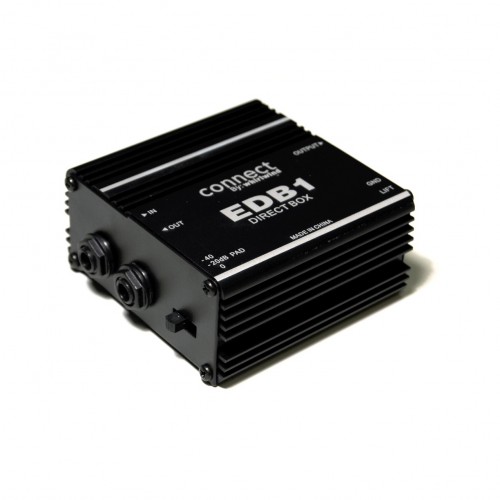

Whirlwind EDB1

The Whirlwind EDB1 is an Imported Economy Direct Box. The EDB1 offers rugged construction while maintaining exceptional sound quality.

Features include:

• 1/4″ In and Through jacks
• XLR output
• Pad switch for connection to “hot” signal sources
• Ground Lift switch to help isolate hum and buzz
• Metal construction and quality transformer

Specs:

• Impedance Ratio (input to output): 133:1
• Frequency Response: 20Hz-20kHz ±1dB
• Level Change: -20dB (input to output, pad switch set to zero dB)
• Pad: 3 position, provides 0dB, -20dB, -40dB additional attenuation
