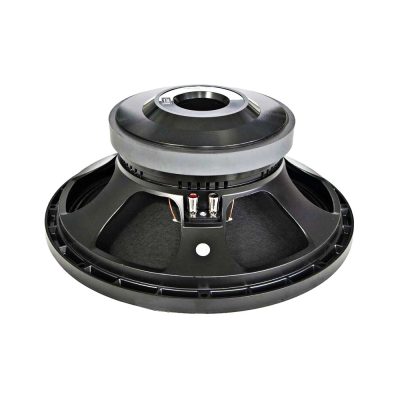

Eighteen Sound 15LW1401 – 15″ 1,000 Watts AES High Power Woofer

Description

The Eighteen Sound 15LW1401 is a very powerful 15″ woofer that handles 1,000 Watts AES & 2,000 Watts Program. Features a 4″ voice coil & a very high Xmax of 9.0MM for a strong tight bass sound that can take a pounding weather protected cones & plate for outdoor use for use in professional very high power speaker systems of the highest quality.

Key Features:

– 98 dB SPL 1W / 1m average sensitivity
– 100 mm (4 in) Interleaved Sandwich Voice coil (ISV)
– 1000 W AES power handling
– Double Silicon Spider (DSS) for improved excursion control and linearity
– Double Demodulating Rings (DDR) for lower distortion
– Improved heat dissipation via unique basket design
– Weather protected cone and plates for outdoor usage
– Suitable for low bass or subwoofer applications

General Specifications:

Nominal Diameter: 380 mm (15 in)
Rated Impedance: 8 Ohm
AES Power: 1000 W
Program Power (1): 1400 W
Peak Power (2): 7000 W
Sensitivity (3): 98 dB
Frequency Range (4): 40 ÷ 2400 Hz
Power Compression @-10dB (5): 0,8 dB
Power Compression @-3dB: 2,1 dB
Power Compression @Full Power: 3,0 dB
Max Recomm. Frequency: 800 Hz
Recomm. Enclosure Volume: 70 ÷ 150 lt. (2,47 ÷ 5,30 cuft)
Minimum Impedance: 6,7 Ohm at 25°C
Max Peak To Peak Excursion: 38 mm (1,53 in)
Voice Coil Diameter: 100 mm (4 in)
Voice Coil Winding Material: copper
Suspension: Triple roll, Polycotton
Cone: Straight ribbed, Paper
