Description

ART ProMix

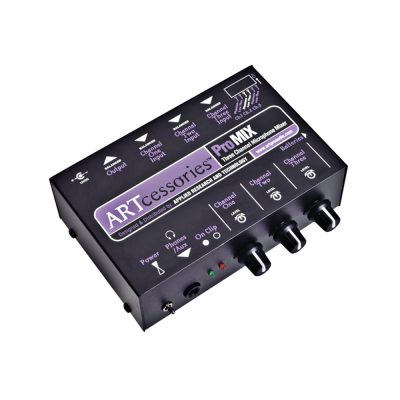

ART ProMix – Three Channel Microphone Mono Mixer

Problem: You need to add 3 mics to a mixer, which only has one available channel.

Solution: Insert an Art ProMIX between the mics and the mixer. Each mic channel on the ProMIX has both phantom power and low-frequency cut selectable via DIP switches plus a level control. The balanced XLR line output can be connected to a mic input on the mixer and headphones or a powered monitor can be connected to the Phone/Aux output. And if AC power is not available, the ProMIX runs on batteries as well.

Specifications:

• Maximum Gain   +60dB
• Input Impedance  600 ohms
• Maximum Input Level  -14dB
• Maximum Output Level  +14dB
• Output Impedance   600 ohms
• Total Harmonic Distortion  0.0002
• Low Cut  -3dB @ 100Hz
• Clip Headroom  3dB
• Output Phantom Power  12V DC
• Power  12V DC (adapter) / 2x 9V (batteries)
• Dimensions  5.625 x 3.75 x 1.75 inches (143mm x 92mm x 45mm)
• Weight  1.5lb (680g)
