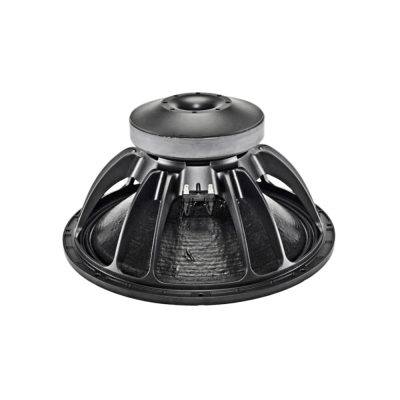

B&C 18TBW100 – 18-Inch 3000W High Power Subwoofer

Description

The B&C 18TBW100 is an 18-inch subwoofer for serious professional audio applications where extremely high power handling and low distortion are required.

Features:

– 3000 W continuous program power capacity
– 100 mm (4 in) split winding copper voice coil
– 35 – 1000 Hz response
– 96 dB sensitivity
– 57 mm peak-to-peak excursion before damage
– Double silicone spider with optimized compliance
– Ventilated voice coil gap for reduced power compression
– Aluminium demodulating ring for very low distortion

Specifications:

– Nominal diameter: 460 mm (18.0 in)
– Nominal impedance: 8 Ω
– Minimum impedance: 6.5 Ω
– Continuous power handling: 3000 W
– Sensitivity (1W/1m): 96.0 dB
– Frequency range: 35 – 1000 Hz
– Voice coil diameter: 100 mm (4.0 in)
– Winding material: Copper
– Former material: Glass Fibre
– Winding depth: 31 mm (1.22 in)
– Magnetic gap depth: 15 mm (0.59 in)
– Flux density: 1.15 T

Design:

– Surround shape: Triple Roll
– Cone shape: Radial
– Magnet material: Ceramic
– Spider: Double Silicone
– Pole design: T-Pole
– Woofer cone treatment: TWP Waterproof Both Sides
– Recommended enclosure: 200.0 dm3 (7.06 ft3)
– Recommended tuning: 32 Hz
