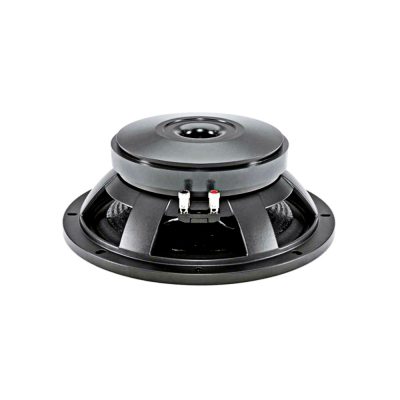

B&C 12PS100 – 12-Inch 1400-Watt 8-Ohm Woofer

Description

B&C 12PS100 is a 12-Inch 1400-Watt 8-Ohm Woofer.

The B&C 12PS100 is a 12″ woofer designed and built to provide reliable, high impact bass when deployed in demanding professional applications.

The B&C 12PS100 12″ pro woofer’s 4″ copper voice coil is wound inside-outside on a fiberglass former and features a generous 21 mm winding length for extended Xmax. A ribbed cone and double half-roll suspension function with total linearity and mechanical integrity, making the 12PS100 especially well suited to woofer duty in high output 2-way professional PA speakers and floor monitors.

Features:

– 1,400 watt continuous program power
– 4″ copper voice coil
– 93 dB 1w/1m sensitivity
– Ribbed cone and double half-roll suspension
– High Xmax for more bass output
– Part #: 294-665
– Weight: 20.7 lbs.

Specifications:

Nominal Diameter:                               12″
Power Handling (RMS):                       700 Watts
Power Handling (Max):                       1400 Watts
Impedance:                                             8 ohms
Frequency Response:                            45 to 1,000 Hz
Sensitivity:                                              93 dB 1W/1m
Voice Coil Diameter:                             4″
