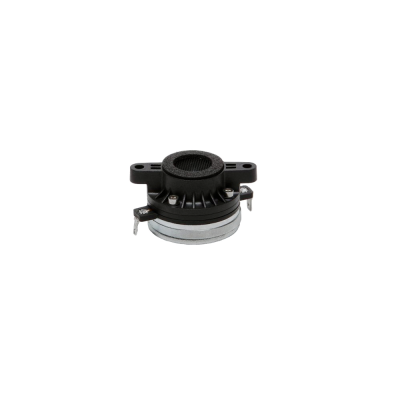

B&C Speakers DE7 – Compact 0.75″ Compression Driver @8ohms

Description

The B&C Speakers DE7 is a Polyester/Mylar 2 Bolt compression driver. The DE7 is meant to work in 2 way or 3 way speaker arrangements where a pro tweeter or super tweeter is needed.

Features:

20 Watts continuous program power capacity
25mm (1 in) Aluminum Voice Coil
3/4″ horn throat diameter
Polyester diaphragm
2000-18000 Hz Response
109 dB Sensitivity

SPECIFICATIONS:

Throat Diameter: 19 mm (0.75 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.6 Ω
Nominal Power Handling: 10 W
Continuous Power Handling: 20 W
Sensitivity: 109.0 dB
Frequency Range: 2.0 – 18.0 kHz
Recommended Crossover: 2.5 kHz
Voice Coil Diameter: 25 mm (1.0 in)
Winding Material: Aluminium
Inductance: 0.1 mH
Diaphragm Material: Mylar
Flux Density: 1.65 T
Magnet Material: Neodymium Ring

MOUNTING INFO:

Two M4 holes 180° on 53 mm (2.1 in) diameter
