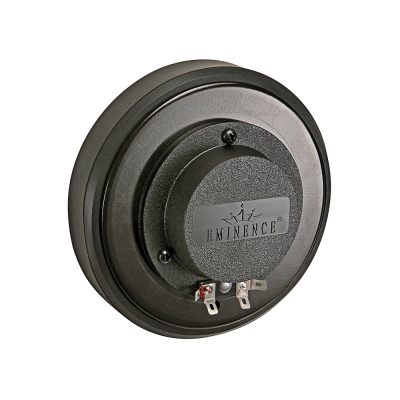

Eminence PSD:2002S-8 – 1-Inch 80-Watt 8-Ohm 1-3/8″-18 Titanium Driver
SKU: PSD2002S-8-
The Eminence PSD:2002-8 is a 1-Inch exit driver that features a Polyimide former and titanium diaphragm.
Our Price: $89.99
In stock (can be backordered)
Description
Eminence PSD:2002S-8
The Eminence PSD:2002-8 is a 1-Inch exit driver that features a Polyimide former and titanium diaphragm. This 8 ohm model is compatible with 1-3/8″-18 TPI screw-on horn lenses.
Developed for totally ‘Eminence-loaded’ cabinets, these HF products achieve extraordinary levels of audio performance with the same unrivaled reliability that you demand of Eminence bass and midrange transducers. Engineering for esoteric HF performance challenges transducer designers with the opposing objectives of power handling and sensitivity. Even when this is resolved, the Eminence criteria for manufacturing consistency and reliability are even tougher to meet. Practical ingenuity and a mastery of materials created the 1″ PSD:2002 compression driver which achieves unprecedented performance and reliability.
Specification:
- Throat Size: 1″, 25.4mm
- Impedance: 8 ohms
- Power Ratings: 80Wrms ** (EIA426B specification, 1.6kHz @ 18dB)
- Resonance: 550Hz
- Usable Frequency Range: 1.5Hz – 20kHz
- Sensitivity (1W @1m on axis on horn): 105dB
- Magnet Weight: 34oz.
- Voice Coil Diameter: 2″, 51mm
- Voice Coil Former: DuPont Kapton
- Diaphragm Material: Titanium
- Screw-On type
- Weight: 5 lbs, Gross 5.76 lbs
- Mounting Type: 1-3/8″-18 TPI
- Exit Diameter: 1″
- Diaphragm Material: Titanium
- Power Handling (RMS): 80 Watts
- Brand: Eminence Speaker
- Model: PSD:2002S-8
- Part Number: 290-446
- UPC: 876358000968
- Product Category: Horn Drivers
- Unit of Measure: EA
- Throat Size 1″, 25.4mm
- Nominal Impedance* 8 ohms
- Power Rating** 80W (AES)
- Free Air Resonace 0.54kHz
- Usable Frequency Range 1200Hz-20kHz
- Sensitivity*** 106.1dB
- Magnet Weight 34oz, 0.96kg
- Voice Coil Diameter 2″ / 51mm
THIELE & SMALL PARAMETERS
DC Resistance (Re) 6.1
MOUNTING INFO
- Overall Diameter 5.25″, 133.4mm
- Mounting Holes Diameter N/A
- Mounting Holes B.C.D. N/A
- Mounting Thread 1 3/8 in. 18 ext.
- Depth 2.2″, 55.9mm
- Weight 5 lbs, 2.27 kg
- Volume 30.76 “, 0.5 liters
MATERIALS OF CONSTRUCTION
- Diaphragm Material Titanium
- Magnet Composition Ferrite
