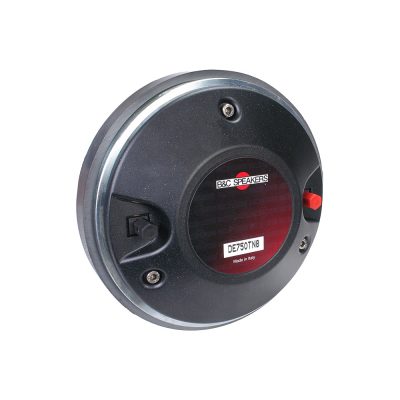

B&C DE750TN – 2-Inch Titanium Horn Driver 8 Ohm 4-Bolt

Description

B&C DE750TN is a 2-Inch Titanium Horn Driver 8 Ohm 4-Bolt.

The B&C DE750TN is B&C’s flagship 2″ driver, the DE750TN, features an all-titanium diaphragm for increased durability and accurate response.

The B&C Speakers DE750TN-8 2″ titanium HF driver is a world-class high frequency transducer that is capable of extreme output levels combined with incredible fidelity and musicality. A powerful ceramic ferrite magnet structure provides the high magnetic flux density required for the DE750TN’s high efficiency, accuracy, and extended high frequency response. A copper cap on the pole piece reduces inductive losses and extends HF capabilities.

Features:

– 220 watt continuous program power capacity
– 3″ aluminum voice coil
– Titanium diaphragm
– Copper shorting cap for extended HF response
– 107.5 dB sensitivity
– 2″ bolt-on format (4-bolt)
– Part # 294-615
– Weight: 14.3 lbs.

Specifications:

Mounting Type:                4-BoltExit Diameter2″
Diaphragm Material:       Titanium
Power handling:                110 watts RMS/220 watts program above recommended crossover of 1 kHz/12 dB slope
VCdia:                                 3″
Impedance:                        8 Ohms
Frequency response:        500-18,000 Hz
SPL:                                     107.5 dB 1W/1m
Dimensions:                       7.1″ diameter x 3.4″ depth
Net weight:                        14.3 lb.
Brand:                                 B&C Speakers
Model:                                 DE750TN
Part Number:                    294-615
UPC:                                    844632001840
Product Category:            Horn Drivers
Unit of Measure:              EA
