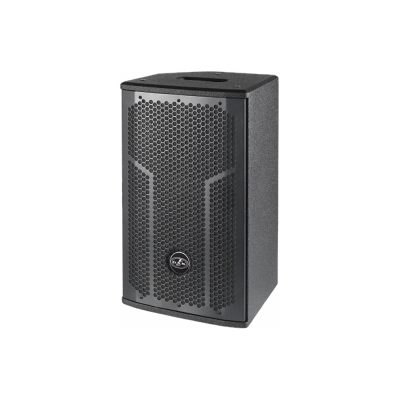

DAS Audio ACTION-508A – 2-way Powered Point Source

Name: DAS Audio ACTION-508A - 2-way Powered Point Source
Brand: DAS Audio
SKU: ACTION-508A
Price: 945.00 USD
Availability: InStock

SKU: ACTION-508A

Our Price: $945.00

In stock (can be backordered)

Categories: 8-10 Inch PA Speakers
Brand: DAS Audio

Description
Additional information

Description

The DAS Audio ACTION-500 active systems incorporate a mixer with 2 inputs. DAScontrol ™ technology with LCD screen allows for the selection of up to 3 different presets (Live, Dance and Monitor) and HPF and LPF filters that optimize the systems when used with subwoofers. The powered systems provide the option of using the logo as a limit indicator.

An unparalleled choice when compact size and weight matter, ACTION-508A is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. And its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

The 720 Wpeak Class D amplifier together with a new 8” transducer (8GV) and the MI-34 compression driver (1.5 cm diameter) deliver outstanding efficiency, both in terms of power consumption and audio power (122 dB SPL). The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Features:

Active biamp system
Dual-channel 720 Wpeak Class D amplifier
Birch wood plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen

Applications:

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

Performance:

Frequency Range (-10 dB) 65 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 122 dB

Electronics and Connectors:

Nominal Amplifier Power (continuous) 360 W
Nominal Amplifier Power (peak) 720 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
AC Input Connector powerCON NAC3MPA
Operating Range 90-127/180-250 VAC
Current Draw 115 V 1.6 A
Current Draw 230 V 0.8 A

Enclosure:

Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 485 x 285 x 260 mm
19,1 x 11,2 x 10,2 in
Net Weight 11,9 kg ( 26,2 lb )

Components:

LF Driver 8GV
HF Driver M-34
Horn/Waveguide BCT-96

Shipping:

Carton Dimensions ( H x W x D ) 547 x 335 x 307 mm
21,5 x 13,2 x 12,1 in
Shipping Weight 13,4 kg ( 29,5 lb )
