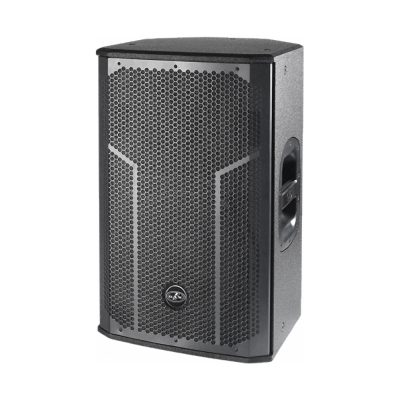

DAS Audio ACTION-512A – 2-way Powered Point Source

Description

The DAS Audio ACTION-512A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Features:

Active biamp system
Dual-channel 1000 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen

Applications:

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

Performance:
Frequency Range (-10 dB) 50 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 131 dB

Electronics and Connectors:

Nominal Amplifier Power (continuous) 500 W
Nominal Amplifier Power (peak) 1000 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
AC Input Connector powerCON NAC3MPA
Operating Range 90-127/180-250 VAC
Current Draw 115 V 2.2 A
Current Draw 230 V 1.1 A

Enclosure:

Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 620 x 380 x 380 mm
24,4 x 15,0 x 15,0 in
Net Weight 20,0 kg ( 44,1 lb )

Components:

LF Driver 12MI4
HF Driver M-34
Horn/Waveguide BC-916

Shipping:

Carton Dimensions ( H x W x D ) 690 x 435 x 435 mm
27,2 x 17,1 x 17,1 in
Shipping Weight 22,5 kg ( 49,6 lb )
