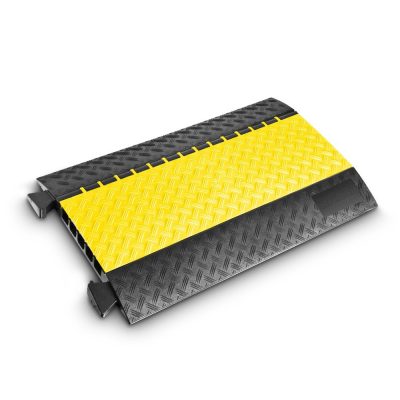

Defender MIDI 5 85300 – Cable Protector 5-channel

SKU: MIDI 5 85300


Our Price: $169.99




5 Medium Channels – The Solution for Nearly AnythingThe Defender® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 20 x 20 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. Defender® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.


  • Heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • 5 channels 34 x 36 mm
  • Load bearing capacity approx. 5 t / 20 x 20 cm
  • Fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Also available with pre-drilled mounting holes with a blue lid (Item No. 85300BLUE)
  • Curves and end ramps for flexible cable protection are available as accessories


Product type
Cable Protectors
5 Channels
870 mm
55 mm
538 mm
Width channel 1
34 mm
Height channel 1
36 mm
Width channel 2
34 mm
Height channel 2
36 mm
Width channel 3
34 mm
Height channel 3
36 mm
Width channel 4
34 mm
Height channel 4
36 mm
Width channel 5
34 mm
Height channel 5
36 mm
Max load
approx. 5t on a surface area of 20 x 20 cm
Chemical resistance
Acid-resistant, Oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range
88 Shore ± 4 A Shore
Fire protection class
Temperature range
-30°C to 60°C °C
13,4 kg
Special feature
