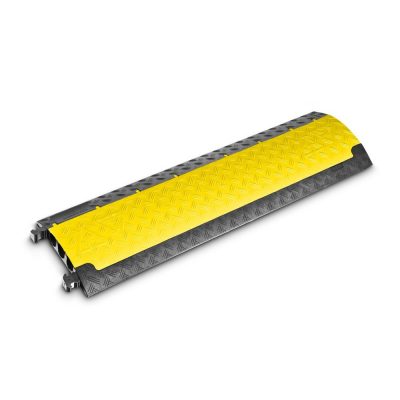

Defender MINI 85200 – Cable Protector 3-Channel

SKU: MINI 85200

-

Our Price: $129.99

Categories:
Brand:

Description

Description

3 small cable channels – light and robustThe Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and the non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys, and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centers and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

Label your cable crossovers! All Defender cable crossovers can be customized with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.

  • Compact, non-slip cable protector made of black, recyclable polyurethane
  • Yellow polyurethane lid with high warning effect and secure closure (also available with black lid, Item No. 85200BLK)
  • Patented, self-cleaning lid hinge
  • 3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
  • Load bearing capacity approx. 2t / 20 x 20 cm
  • Fire resistance class E according to DIN EN 13501-1 (B-s1 applied for)
  • Resistant to oil, acid, petrol, and short-term contact with solvents
  • Dimensions 105 x 29 x 5 cm; Weight 6 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Not suitable for vehicular traffic
  • End ramps for secure cable inlet and exit as accessories

Specifications

General
Product type
Cable Protectors
Type
3 Channels
Width
290 mm
Height
50 mm
Length
1005 mm
Channels
3
Width channel 1
35 mm
Height channel 1
30 mm
Width channel 2
35 mm
Height channel 2
35 mm
Width channel 3
35 mm
Height channel 3
30 mm
Material
Polyurethane
Max load
approx. 2 t on a surface area of 20 x 20 cm
Chemical resistance
Acid-resistant, Oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range
88 Shore ± 4 Shore
Fire protection class
Class E in accordance with DIN EN 13501-1 (B-s1 pending)
Temperature range
-30 to +60 °C
Weight
5,9 kg
Special feature
DEKRA-certified
