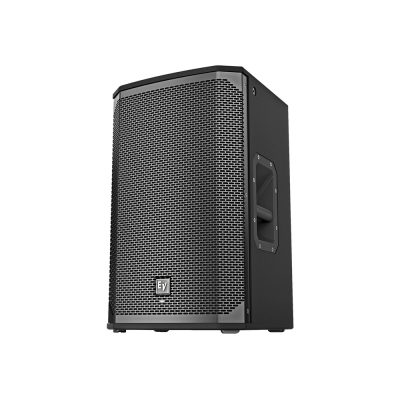

Electro-Voice EKX-12 – 12-Inch 2-Way 1400-Watt Passive Loudspeaker
SKU: EKX-12
-
Our Price: $749.00
In stock
Description
Electro-Voice EKX-12
The Electro-Voice EKX-12 is a 12-Inch 2-Way 1400-Watt Passive Loudspeaker.
Description
- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducersâ„¢ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90Ëš x 60Ëš pattern for best coverage on mid-size stages. 40Ëš monitor angle with rubber feet.
Specifications
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95Â dB |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Crossover Frequency | 1.6 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 55 Hz – 20 k Hz Full Space Measurement |
| Frequency Response (-3 dB) | 82 Hz – 18 k Hz Full Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| HFÂ Transducer | DH-1M 1-inch titanium compression driver |
| LFÂ Transducer | EVS-12M 300 mm (12 in) |
| Maximum SPL | 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance | 7.5 Ω |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 350 W/1400 W |
| Recommended High-Pass Frequency | 55Â Hz |
| Shipping Weight | 21.4 kg (47.18 lbs) |
| Suspension | (8) M10 threaded mounting points |
| Height | 14RU 607 mm (23.9″) |
| Width | 375 mm (14.76″) |
| Depth | 356 mm (14.02″) |
| Weight Net | 17.4 kg (38.36 lbs) |
