Electro-Voice TX1122FM – 12-Inch 500-Watt 2-Way Full-Range Floor Monitor

Description

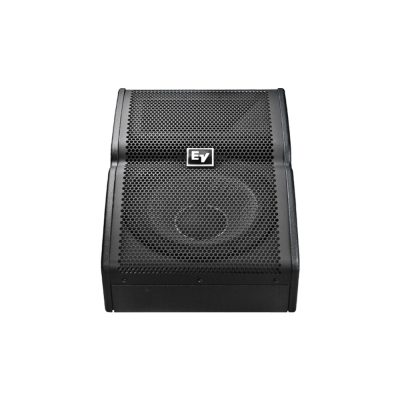

The Electro-Voice TX1122FM is a 12-Inch 500-Watt 2-Way Full-Range Floor Monitor.

The Electro-Voice TX1122FM Tour-X Floor Monitor is compact, delivering high output for use on small to medium-sized stages. When high-quality vocal and instrument output is required reach for this lightweight monitor package.

With an undeniable combination of functional good looks, compact design and engineering breakthroughs, Tour X FM will redefine the world of stage monitors for years to come. The TX1122FM and TX1152FM advance the legacy of the globally accepted EV FM series and advance it with a healthy dose of innovative Electro-Voice® engineering.

The most notable innovation of the Tour X FM models is the split baffle design with patent-pending SST (Signal Synchronized Transducers) technology. A split baffle creates two very important benefits: moving the acoustic origins of the compression driver and woofer close together, and the split in the baffle becomes the port, allowing for a much more compact enclosure. The result of this design is signal synchronized with nearly perfect phase summation. With a unique Backbone grille, Tour X FM models not only look great, but also provide greater strength and damage resistance than ordinary grille block designs. Proprietary, ergonomically correct handles and angled input panels make the Tour X FM models easy to transport and set up in critical stage monitoring applications.

Features:

• 55° Compact Vertical Floor Monitor with Signal Synchronized TransducersTM
• 99 dB Sensitivity, 132 dB Maximum SPL
• DH3 1.25″ (32mm) Diaphragm, 1″ (25mm) Exit Pure Titanium Compression Driver
• SMX2121 12″ (305mm) LF Transducer with Fully Symmetric Drive
• Integrated Crossover with Steep 24 dB/ Octave Slopes and HF Protection
• 90° x 50° Coverage Pattern
• 500W Continuous (2000W Peak) Power Handling

Specs:

• Freq. Response1 (-3 dB): 70 Hz – 20 kHz
• Freq. Range1 (-10 dB): 55 Hz – 20 kHz
• Rec. Hipass Frequency: 60 Hz
• Axial Sensitivity: 99 dB (1W/1m)
• Max. Calculated SPL: 132 dB
• Horizontal Coverage: 90°
• Vertical Coverage: 50°
• Power Handling: 500W Continuous, 2000W Peak
• LF Transducer: SMX2121, 12 in (305mm) Driver
• HF Transducer: DH3, 1.25 in (32mm) Diaphragm
• Compression Driver
• Crossover Frequency: 1600 Hz
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6.4 Ohms
• Connectors: (2) Neutrik Speakon NL4
• Enclosure Material: Plywood and MDF with EVCoatTM
• Grille: 16 GA Steel, Black Powdercoat, with
• Rotatable Logo
• Dimensions (H x W x D): 17.3″ x 14.3″ x 22.6″
• (440mm x 364mm x 573mm)
• Net Weight: 43.7 lbs (19.8 kg)
• Shipping Weight: 49.2 lbs (22.4 kg)
