Description

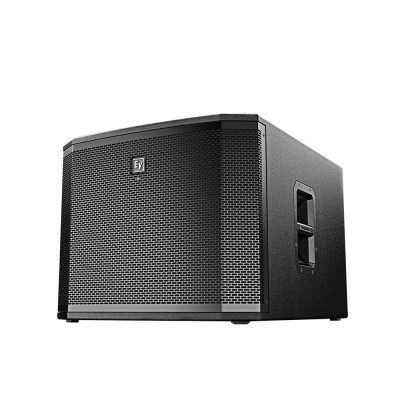

Electro-Voice ETX-15SP

The Electro-Voice ETX-15SP from Electro-Voice is a powered subwoofer that can be used in a variety of portable and permanent applications.

The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, true cardioid presets, protection limiters, EQ mode, and a lockout mode that prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate a limit.

EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection. True cardioid DSP preset delivers true cardioid response across all frequencies.

The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. Subwoofers include professional-grade castors and a combination pole mount receptacle for threaded and unthreaded loudspeaker poles.

ETX Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.

Features:

• 1800 W amplifier and 134 dB peak SPL with integrated FIR-Drive DSP
• Single-knob DSP includes presets for multiple configurations and top+sub combinations (performance style, locations, and space)
• Loudspeaker system performance monitoring via integrated LCD and front panel LED
• Includes special DSP preset for true cardioid performance across the full operating bandwidth
• The enclosure includes removable casters and a combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models and other the two-way models
• 15-inch DVX woofer for maximum punch

Technical specifications:

• Frequency Response (-3 dB): 55 Hz – 20 kHz1
• Frequency Range (-10 dB): 43 Hz – 20 kHz1
• Maximum SPL: 135 dB peak2
• Coverage (H x V): 90° x 60°
• Power Rating: 2000 W
• LF Transducer: SMX2120 300 mm (12 in)
• HF Transducer: DH3-B 1.25-in titanium
• compression driver
• Crossover Frequency: 1600 Hz
• Connectors: (2) XLR/TRS combo jack and (1)
• XLR link output
• Enclosure: 18 mm, 13-ply birch plywood with
• EVCoat
• Grille: 16AWG steel with powder coat
• Suspension: (8) M10 suspension points
• Dimensions (H x W x D): 613 mm x 381 mm x 400 mm
• (24 in x 15 in x 16 in)
• Net Weight: 23.6 kg (52.0 lb)
• Shipping Weight: 26.8 kg (59.1 lb)
• Power Consumption: 100 – 240 V~, 50 –
