Description

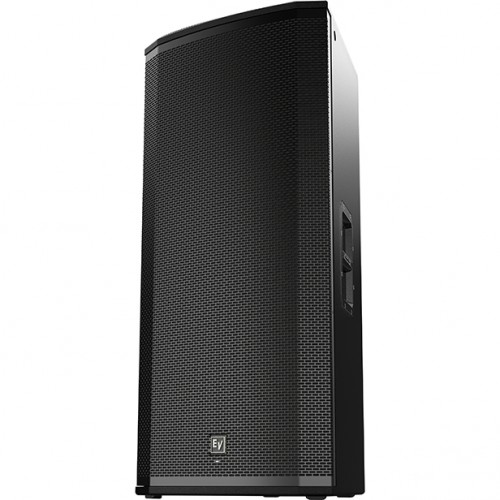

Electro-Voice ETX-35P

The Electro-Voice ETX-35P from Electro-Voice is a high-power three-way loudspeaker; it can be used in a variety of portable and permanent applications.

The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, selective voicing, protection limiters, EQ modes, and a lockout mode that prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate a limit.

ETX-35P features three (3) high-sensitivity transducers, for high output sound which is optimized for precise coverage and low distortion. EV designed and manufactured transducers include SMX woofer technology using composite cone materials, flux stabilizing rings, and thermal management.

This transducer yields lower distortion, smooth response, and high SPL. The high-efficiency DH3-B compression driver has a convex diaphragm driving a coherent phase device extending frequency response to 20 kHz. EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection.

The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. ETX Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.

Features

• 2000 W Class-D power amplifier and 136 dB peak SPL with integrated FIR-Drive DSP
• Single-knob DSP includes presets for multiple configurations and top+sub combinations (performance style, locations, and space)
• Loudspeaker system performance monitoring via integrated LCD and front panel LED
• SST design assures precise and consistent coverage
• Designed for floor, stacked, or tilt pole mount (0 or 7.5 degrees) for portable or permanent installation (Eight (8) M10 threaded suspension points)
• 12-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 15-inch LF SMX woofer
• 6.5-inch MF driver
• 1.25-inch HF titanium compression driver

Technical specifications

• Frequency Response (-3 dB): 55 Hz – 20 kHz1
• Frequency Range (-10 dB): 43 Hz – 20 kHz1
• Maximum SPL: 135 dB peak2
• Coverage (H x V): 90° x 60°
• Power Rating: 2000 W
• LF Transducer: SMX2120 300 mm (12 in)
• HF Transducer: DH3-B 1.25-in titanium
• compression driver
• Crossover Frequency: 1600 Hz
• Connectors: (2) XLR/TRS combo jack and (1)
• XLR link output
• Enclosure: 18 mm, 13-ply birch plywood with
• EVCoat
• Grille: 16AWG steel with powder coat
• Suspension: (8) M10 suspension points
• Dimensions (H x W x D): 613 mm x 381 mm x 400 mm
• (24 in x 15 in x 16 in)
• Net Weight: 23.6 kg (52.0 lb)
• Shipping Weight: 26.8 kg (59.1 lb)
• Power Consumption: 100 – 240 V~, 50 – 120V~
