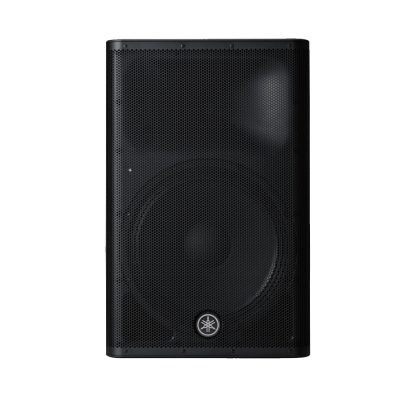

Yamaha DXR15mkII

The Yamaha DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha’s cutting edge technologies. Throw in some D-CONTOUR and you’ll feel like you’re using a subwoofer.

General Specifications

• Speaker type 15″ 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB) 49Hz – 20kHz
• Nominal coverage
  • H 90°
  • V 60°
• Components
  • LF Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite
  • HF Diaphragm:1.75″, Type: 1″ throat compression driver, Magnet:Neodymium
• Crossover FIR-X tuning™ (linear phase FIR filter)
• Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis) 134dB SPL
• I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
• Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Power requirements 100V – 240V, 50Hz/60Hz
• Power consumption 110W
• Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 18mm eyebolts)
• Pole socket 35mm with 2-way features (0 or 7 degrees)
• Dimensions
  • W 445mm (17 4/8″)
  • H 700mm (27 4/8″)
  • D 380mm (15″)
• Net weight 21.8 kg (48.1 lbs)
• Accessories UB-DXR15 (U-bracket)
• Others Material: ABS (Matte Finish, Black)
