Eminence Alpha-10A – 10-Inch 300W 8-Ohm Driver
SKU: Alpha-10A
-
10-Inch 300W 8-Ohm Driver.
Our Price: $94.99
In stock
Description

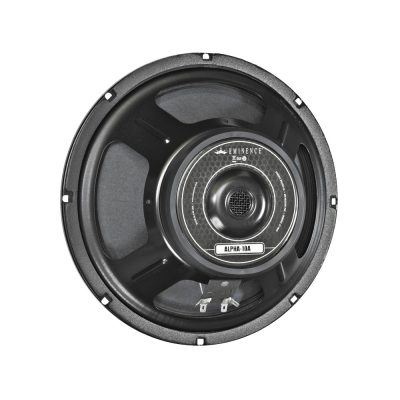

Eminence Alpha-10A
The Eminence Alpha-10A is a 10-Inch 300W 8-Ohm Driver.
Recommended for professional audio mid-bass applications in a small sealed cabinet.
SPECIFICATION
Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating**
Watts150 W
Music Program 300 W
Resonance 50 Hz
Usable Frequency Range57 Hz – 4.5 kHz
Sensitivity*** 95.6 dB
Magnet Weight 20 oz.
Gap Height 0.25″, 6.4 mm
Voice Coil Diameter 1.5″, 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 50 Hz
DC Resistance (Re)5.31 Ω
Coil Inductance (Le) 0.66m H
Mechanical Q (Qms) 5.21
Electromagnetic Q (Qes) 0.66
Total Q (Qts) 0.59
Compliance Equivalent Volume (Vas) 82.2 liters / 2.9 cu.ft.
Peak Diaphragm Displacement Volume (Vd)114 cc
Mechanical Compliance of Suspension (Cms) 0.46 mm/N
BL Product (BL) 7.5 T-M
Diaphragm Mass Inc. Airload (MMs) 22 grams
Efficiency Bandwidth Product (EBP) 76
Maximum Linear Excursion (Xmax) 3.2 mm
Surface Area of Cone (Sd) 355.4 cm2
Maximum Mechanical Limit (Xlim) 9.1 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 8.5-11.3 liters / 0.3-0.4 cu.ft.
Vented 28.3-53.8 liters / 1-1.9 cu.ft.
Driver Volume Displaced0.034 cu.ft. / 0.95 liters
Overall Diameter 10.11″, 256.8 mm
Baffle Hole Diameter 9.13″, 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23″, 5.8mm
Mounting Holes B.C.D. 9.6″, 243.8mm
Depth 3.9″, 99.1 mm
Net Weight 4.5 lbs, 2.04 kg
Shipping Weight 5.6 lbs, 2.54 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core DetailsVented and extended core
Basket Materials Pressed steel basket
Cone CompositionPaper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
