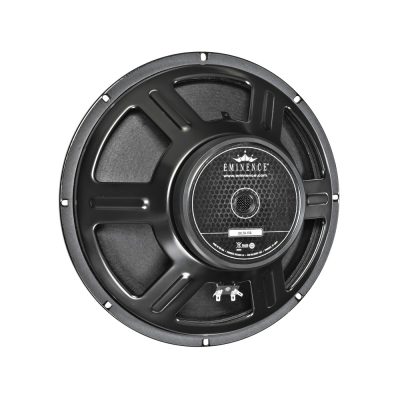

Eminence Delta-15LFA

The Eminence Delta-15LFA 15-inch speaker’s performance is optimized for high power bass in sound reinforcement systems, bass guitar combos, club music systems, and stage monitors.

Performance optimized for high power bass in sound reinforcement systems, bass guitar combos, club music systems and stage monitors. Eminence LF models are specifically designed with extended Xmax to deliver more bass than standard models and provide “a true woofer” for three-way applications.

For all high power bass applications (including bass guitar), ideal for 2-way PA systems, and sound reinfocement systems. The Delta 15 has a 2.5″ polyamide-imide coated two-layer 28 ga. aluminum voice coil, kapton coil former, 80 oz. ferrite magnet, vented and extended core, paper cone, rolled cloth cone edge with deep corrugations for extended Xmax, and a paper dust cap. Available in 8 ohms.

Features:

• Kapton coil former
• Ferrite magnet
• Pressed steel basket
• Polyamide-imide coated aluminum voice coil
• Paper cone/cloth cone edge
• Solid composition paper dust cap

Specifications:

• Nominal Basket Diameter: 15″, 381mm
• Impedance: 8 ohm
• Power Rating: 500W rms / 1000W Peak
• Resonance: 41 Hz
• Usable Frequency Range: 40 Hz – 2.5 kHz
• Average Sensitivity 1W @ 1m: 101 dB
• Magnet Weight: 56 oz
• Magnet Gap Depth: 0.375″, 9.53 mm
• Voice Coil Diameter: 2.5″, 63.5 mm
• Dimensions: Overall Diameter: 15.15″, Cutout Diameter: 13.77″, Mounting Depth: 6.05″.
