Description

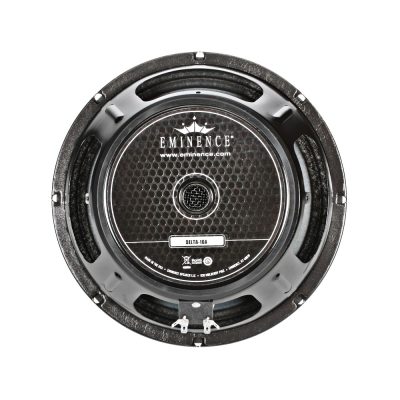

Eminence Delta-10A

The Eminence Delta-10A is a 10-Inch 8-Ohm Midrange Driver.

Recommended for professional audio and bass guitar applications as a woofer/mid-bass or midrange in vented monitors, satellites and multi-way enclosures.

SPECIFICATIONS:

Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating**
Watts 350 W
Music Program 700 W
Resonance 66 Hz
Usable Frequency Range 63 Hz – 3.7 kHz
Sensitivity*** 98.8 dB
Magnet Weight 56 oz.
Gap Height 0.375″, 9.5 mm
Voice Coil Diameter 2.5″, 64 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs) 66 Hz
DC Resistance (Re) 5.42 Ω
Coil Inductance (Le) 0.74m H
Mechanical Q (Qms) 6.53
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.33
Compliance Equivalent Volume (Vas) 30.5 liters / 1.08 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 121 cc
Mechanical Compliance of Suspension (Cms) 0.18 mm/N
BL Product (BL) 14.4 T-M
Diaphragm Mass Inc. Airload (MMs) 32 grams
Efficiency Bandwidth Product (EBP) 189
Maximum Linear Excursion (Xmax) 3.5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 9.4 mm

MOUNTING INFORMATION

Recommended Enclosure Volume
Sealed N/a
Vented 12.7-37.9 liters / 0.45-1.34 cu.ft.
Driver Volume Displaced 0.05 cu.ft. / 1.42 liters
Overall Diameter 10.09″, 256.3 mm
Baffle Hole Diameter 9.18″, 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25″, 6.4mm
Mounting Holes B.C.D. 9.66″, 245.4mm
Depth 4.25″, 108 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12 lbs, 5.44 kgs

MATERIALS OF CONSTRUCTION

Coil Construction Aluminum voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
