Description

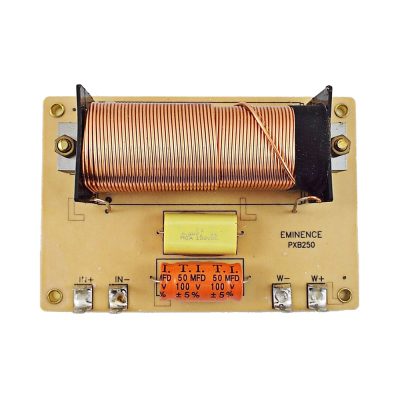

Eminence PX-B 250

The Eminence PXB:250 is designed to work in high-power cabinets, px crossovers are technically superior passive filters available as board-only or complete with fitted hardware for a smart, economical `factory-fit` finish.

Designed and built for Eminence, px crossovers feature advanced circuit design to both preserve the crossover and your HF drivers.

In px crossovers, current is limited when the hf level control is set to* ” 0″ on its scale (max. -9dB attenuation).* A secondary benefit of the design is to form a voltage divider across the HF driver. * The High-Pass Protection uses custom-built aerospace lamps as positive temperature coefficient series varistors.

The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the HF driver without introducing distortion.* This circuitry provides smooth 3:1 analog compression during input overload conditions over 250Wrms.* At full drive level approaching clipping, the electrical attenuation to the protected HF driver is -4.5dB.* In every way, Eminence px crossovers are a technically superior product.

Eminence pxb board-only crossovers are a lower cost alternative to the “cabinet ready” models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the “cabinet ready” models.

They feature advanced circuit design to both preserve the crossover and your drivers. In every way, Eminence pxb crossovers are a technically superior product. The 250 Hz low pass frequency is based on an 8 ohm driver. With a 4 ohm driver, the crossover frequency will be approximately 125 Hz. Dimensions: 5-1/2″ L x 3-3/4″ W x 1-1/2″ H.

Features:

• Type: Low-Pass
• Cabinet Ready: No
• Crossover Frequency: 500Hz
• Slope:12dB/octave Butterworth
• Impedance:8ohms
• Power Handling:600Wrms

Specifications:

• Crossover Type Low Pass
• Configuration Board Only
• Brand Eminence Speaker
• Model PXB:250
• Part Number 290-612
• UPC 876358001378
• Product Category Assembled Passive Crossovers
• Unit of Measure EA
• Weight 1 lbs.
