Description

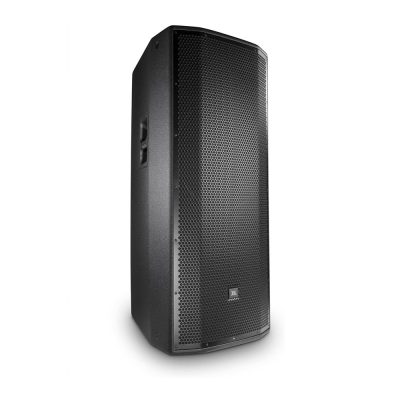

JBL PRX835W

The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier,  the JBL PRX835W delivers incredible volume in a lightweight and compact form factor.

FEATURES

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue
• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive® transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Integrated 12 x M10 Suspension Points
• Universal power supply for worldwide compatibility
• dbx Type IV™ limiting ensures clear, accurate sound at high volumes
• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

SPECIFICATIONS

• System Type Self Powered 15”, three-way, bass-reflex
• Maximum SPL Output 138 dB peak
• Frequency Range (-10 dB): Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz
• Frequency Response (±3 dB) Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz
• Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
• Signal: Green LED indicates signal present
• Power: Blue indicates system has power and ready to pass audio.
• EQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
• Dynamic Control (Input) dbx Type IV™ limiter circuit
• Crossover Frequency 580 Hz, 2.1 kHz
• Design Highly efficient Class-D amplifier
• Power Rating 1500W (750W x 2)
• AC Power Input 100V – 240V ~ 50/60 Hz
• LF Driver 1 x JBL 275G 380 mm (15 in) woofer
• MF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
• HF Driver 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern 90° x 50° nominal
• Directivity Index (DI) 10.5 dB
• Directivity Factor (Q) 11.2
• Enclosure Trapezoidal, 18 mm, plywood
• Suspension / Mounting 12 M10
• Transport 2 x integrated handles with injection molded backing cup
• Finish Obsidian DuraFlex™ finish
• Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D) (36.9 in x 17.5 in x 21.2 in)
• Net Weight 32.38 kg (71.4 lb)
• Gross Weight 38.6 kg (85.0 lb)
