Description

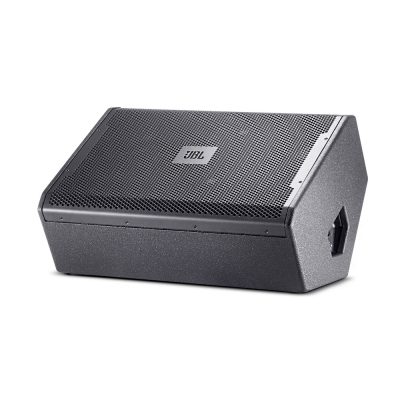

JBL VRX915M

Features

• Compact and low-profile for minimal obstruction of audience sightlines
• 50° x 90° nominal coverage
• Bi-amplified or full-range passive operation
• Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
• 4″ (voice coil) diameter compression driver with neodymium magnet

Specifications

• Power Rating 800 W / 1600 W / 3200W
• Frequency Response (-10dB) 60 Hz – 20 kHz
• Dimensions (H x W x D)
  • 629 mm x 432 mm x 324 mm (375 mm stage height)
  • 24.75 in x 17 in x 12.75 in (14.75″ stage height)
• Coverage Pattern (-6 dB) 50° x 90° nominal
• Crossover Modes Passive / Bi-amp
• Crossover Frequency 1.1 kHz
• Maximum SPL (1m) 127 dB SPL continuous (133 dB SPL peak)
• Sensitivity 98 dB SPL
• LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
• HF Driver 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
• Nominal Impedance 8 ohms
• Active Tunings Tunings available at www.jblpro.com
• Enclosure Symmetrical stage monitor, 15/18 mm, plywood
• Finish Black DuraFlex™ finish
• Grille Powder coated, black, 16 gauge perforated steel with an acoustically transparent black screen backing
• Inputs Neutrik® Speakon® NL-4 (x2), one on each end
• Net Weight (each) 21 kg (46.0 lb)
• Outputs 1 x XLR
