Description

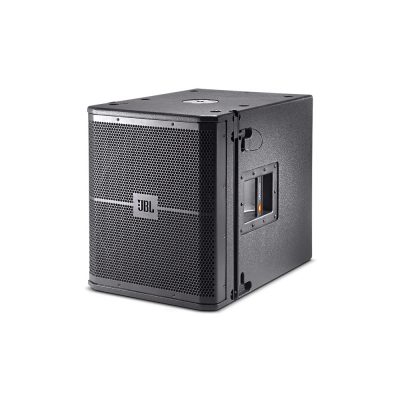

JBL VRX915S

The JBL VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15″ woofer in a front-loaded, vented enclosure.

FEATURES

• Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
• 15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
• Light and compact for versatility and easy handleability.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.

APPLICATIONS

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

SPECIFICATIONS

• Power Rating 800 W / 1600 W / 3200 W
• Frequency Range 35 Hz – 250 Hz (-10 dB)
• Dimensions
• (H x W x D)
  • (19.5 in x 16.5 in x 23.5 in)
• Frequency Response 40 Hz – 250 Hz (+/-3db)
• System Maximum SPL 126 dB SPL
• System Sensitivity (1w @ 1m 91 dB SPL
• LF Driver 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer
• Nominal Impedance 4 Ohms
• Active Tunings Tunings available at www.jblpro.com
• Enclosure 15 mm – 18 mm, multi ply birch plywood
• Suspension / Mounting Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
• Finish Black DuraFlex™ finish
• Grille Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.
• Input Connectors Switchable, +1/-1 or +2/-2
• Net Weight 26.3 kg (58 lb)
