Description

JBL VRX918S

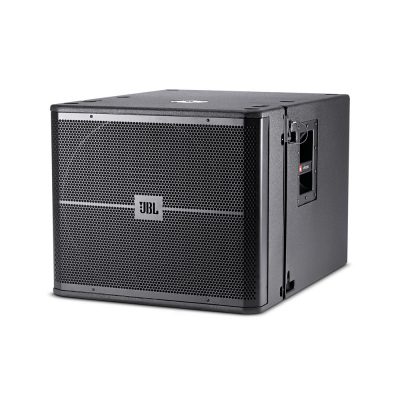

The JBL VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18″ woofer in a front-loaded, vented enclosure.

FEATURES

• Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
• 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
• Large port area for reduced distortion
• 20 mm threaded pole socket for solid, secure satellite speaker mounting

SPECIFICATIONS

• Power Rating 800 W / 1600 W / 3200 W
• Frequency Range 31 Hz – 220 Hz
• Dimensions
  • (H x W x D) 20.0 in x 23.5 in x 29.5 in
• Frequency Response 34 Hz – 220 Hz
• Recommended
• Crossover Frequencies 80 Hz, 24 dB / octave HPF
• 80 Hz, 24 dB / octave LPF
• System Maximum SPL 130 dB SPL peak
• System Sensitivity 95 dB SPL
• LF Driver 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
• Nominal Impedance 8 ohms
• Active Tunings Tunings available at www.jblpro.com
• Enclosure Rectangular, 18 mm, 13-ply birch plywood
• Suspension / Mounting Optional VRX932LA-AF line array frame kit or 10mm eyebolt
• Finish Black DuraFlex™ finish
• Grille Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.
• Input Connectors Neutrik® Speakon® NL-4 (x2)
• Net Weight 37 kg (81 lb)
• Optional Accessories SRX718S-CVR: Pull-over padded cover
• SS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mm
• WK-4: Caster kit
• VRX-AF: Array Frame Kit
• M-10 eyebolt kit
