Description

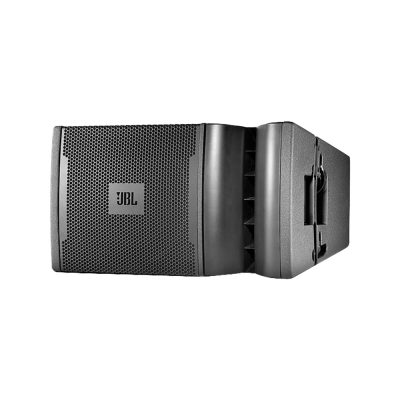

JBL VRX932LAP

The JBL VRX932LAP is a powered, lightweight, compact 12″ two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features:

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
• JBL’s exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
• Array Configuration Selector permits “array shading”.

Specifications:

• Power Rating: 1750 Watts Peak 875 Watts Continuous
• Frequency Range: 57 Hz – 20 kHz(-10 dB)
• Dimensions(H x W x D)
  • 349 mm x 597 mm x 444 mm
  • (13.75 in x 23.5 in x 17.5 in)
• Frequency Response: 75 Hz – 20 Hz (+/-3db)
• Maximum Peak Output: 136 dB SPL at 1m
• Coverage Pattern: 100 x 15 nominal
• DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)
  • LF: 750 Watts
  • HF: 125 Watts
• DPC-2 Output Section: LF: Dual-Bridged Technology™, Class D
• Audio Input Connector: XLR with loop-through
  • LF Driver: 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
  • HF Driver: 3 x JBL 2408J, 38 mm (1.5 in)
• User Controls: Input Attenuator (0-16 dB)
• Signal Processing: DSP based, resident in Input Module
• AC Power Operating Range:
  • 90-132 VAC or 216-264 VAC,
  • 50/60 Hz
• AC Input Connector: Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements 6A per system at 120V, 3A per system at 240V
• Enclosure: 25/15 mm, 11-ply birch plywood
• Suspension / Mounting Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual-angle 36mm pole mount cup for pole or tripod mounting
• Finish Black DuraFlex™ finish
• Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
• Net Weight:
  • 24 kg
  • 52 lb
• Optional Accessories: VRX-AF: Suspension array frame
