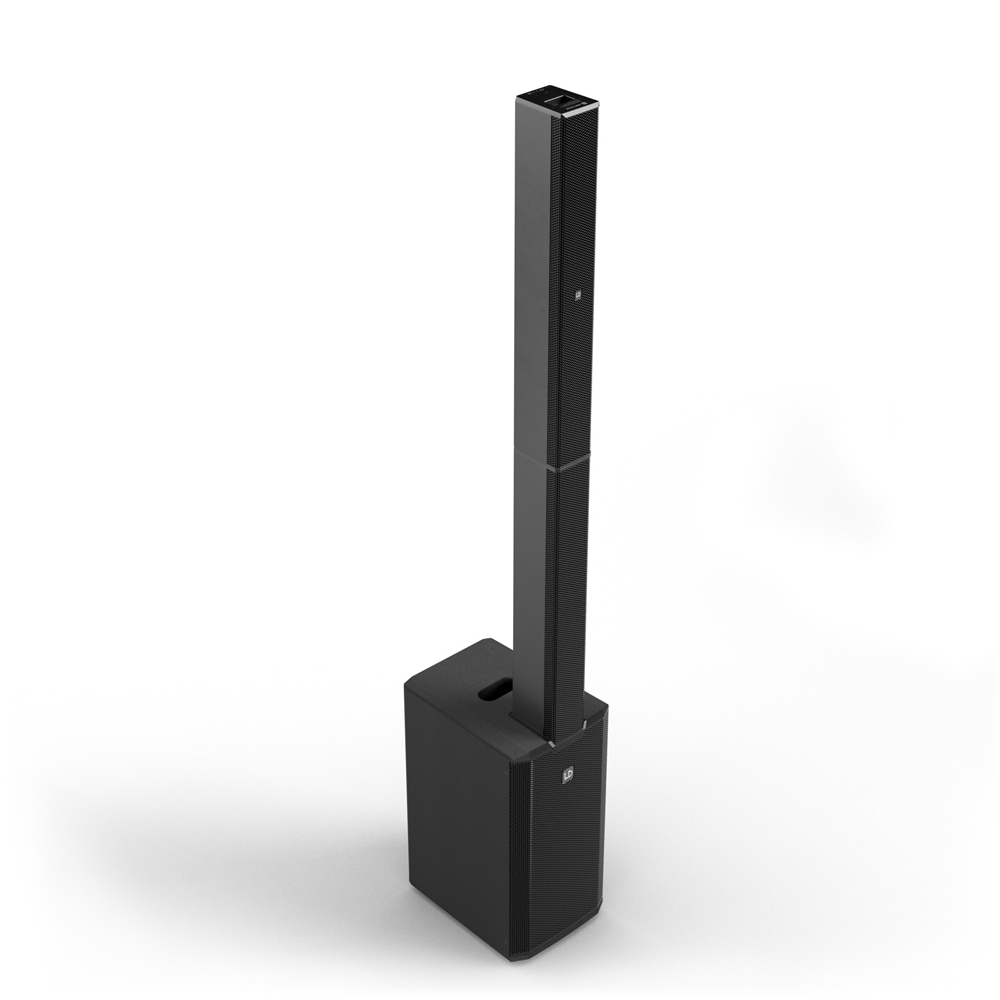

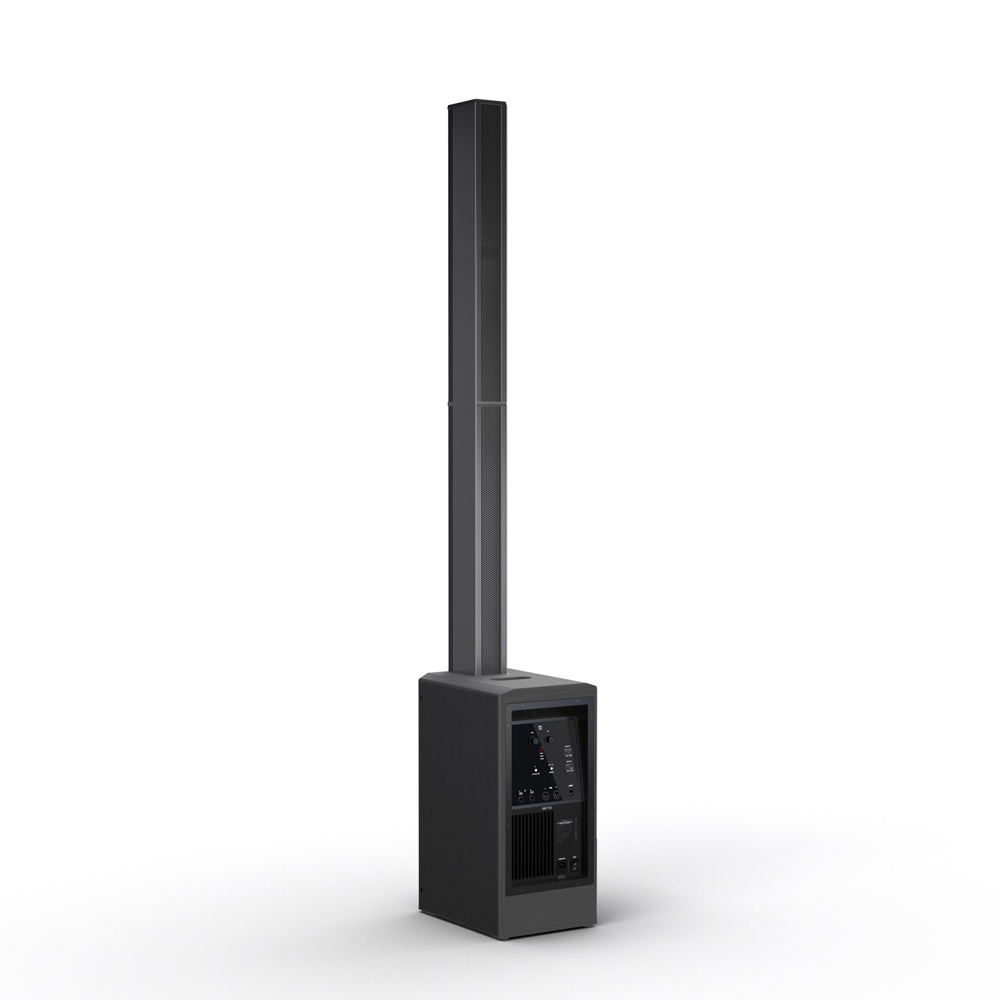

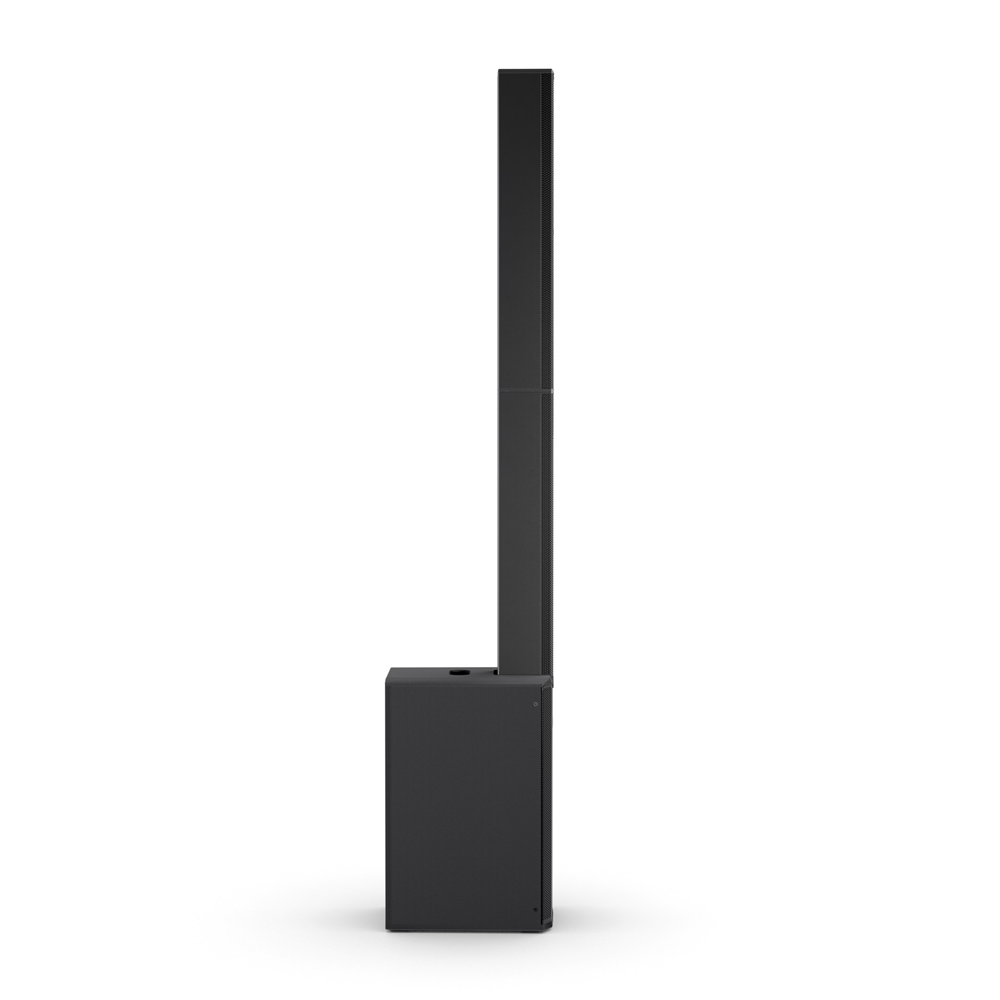

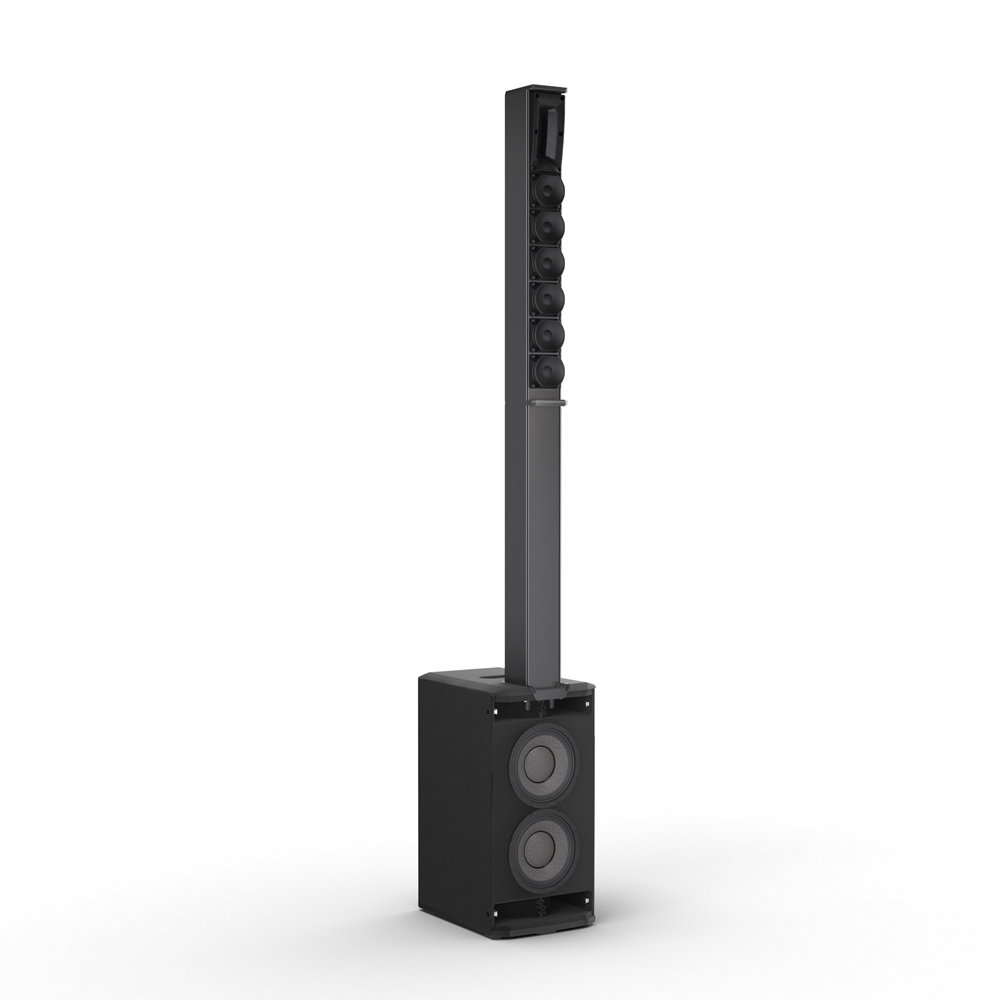

LD Systems MAUI 11 G3 – Portable Cardioid Column PA System, Black

SKU: MAUI 11 G3

-

Our Price: $1,199.00

In stock

Description

Compact, powerful and uncomplicated – a column PA is and remains the ideal partner for DJs and small bands. The MAUI series from LD Systems embodies the all-in-one concept in its purest form and offers an unbeatable PA package of sound, design, technology and handling. Set up, connect, done!

The MAUI 11 G3 delivers a large, powerful and precise sound with 730 W RMS power (1,460 W peak), which impresses in all applications: as a main PA for concerts, as a sound system for mobile DJs or as a sound system at weddings, company parties and other events.

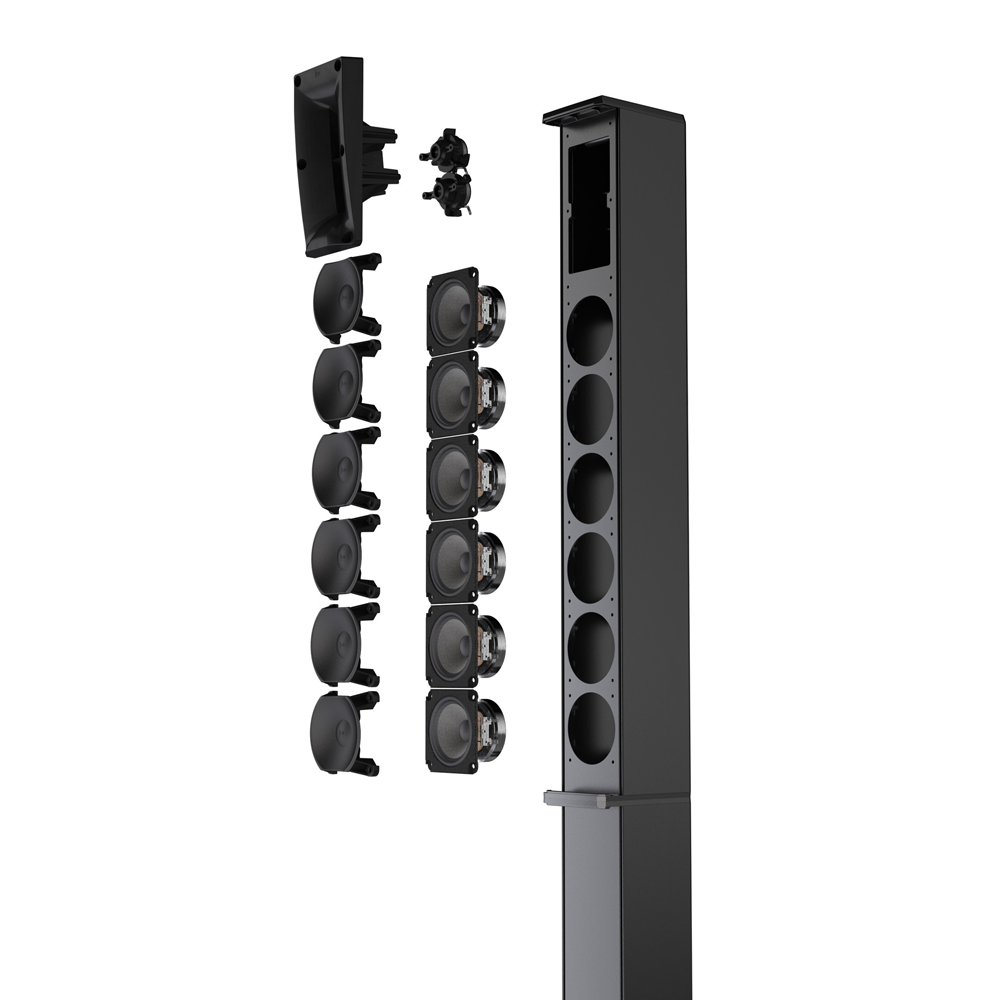

With its elegant design, the MAUI 11 G3 looks particularly harmonious. The two aluminum column elements in the MAUI G3 series are located at the front edge of the subwoofer, which further reinforces the seamless visual impression. There are 6 x 3.5” midrange drivers in the columns, which, in combination with the innovative phase plug design and the 2 x 1” tweeters, ensure even sound distribution with constant horizontal radiation. In addition, the BEM-optimized waveguide in front of the tweeters transports the high frequencies to the rear audience areas.

The developer’s hand was also placed at the crossover point, the transition between midrange and high-frequency speakers, in order to reduce harmonic distortions and cancellations and to make the sound even more transparent and powerful. The result: particularly precise imaging of vocals and instruments over the entire 120° x 30° radiation range.

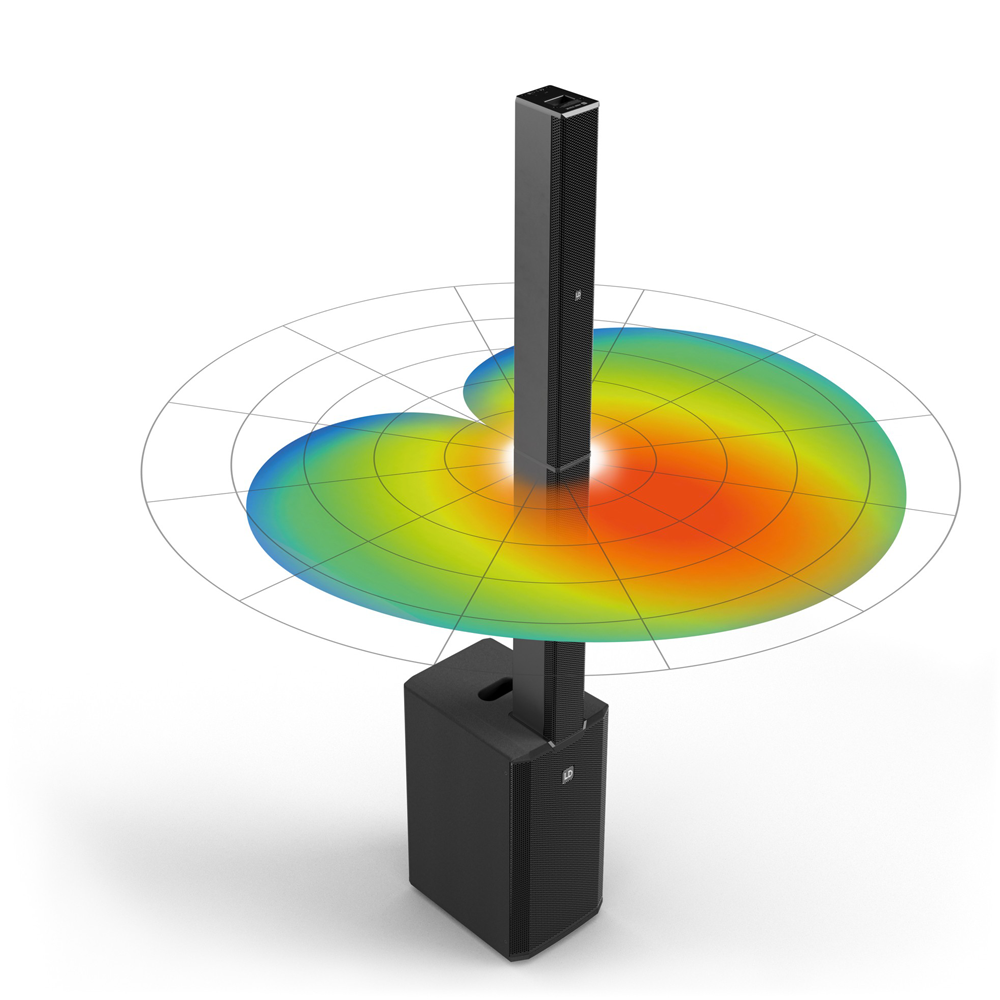

The columns of the MAUI 11 G3 are designed as cardioid speakers. This ensures controlled low mids at the front and attenuation of up to 18 dB at the rear as well as a clean stage sound field.

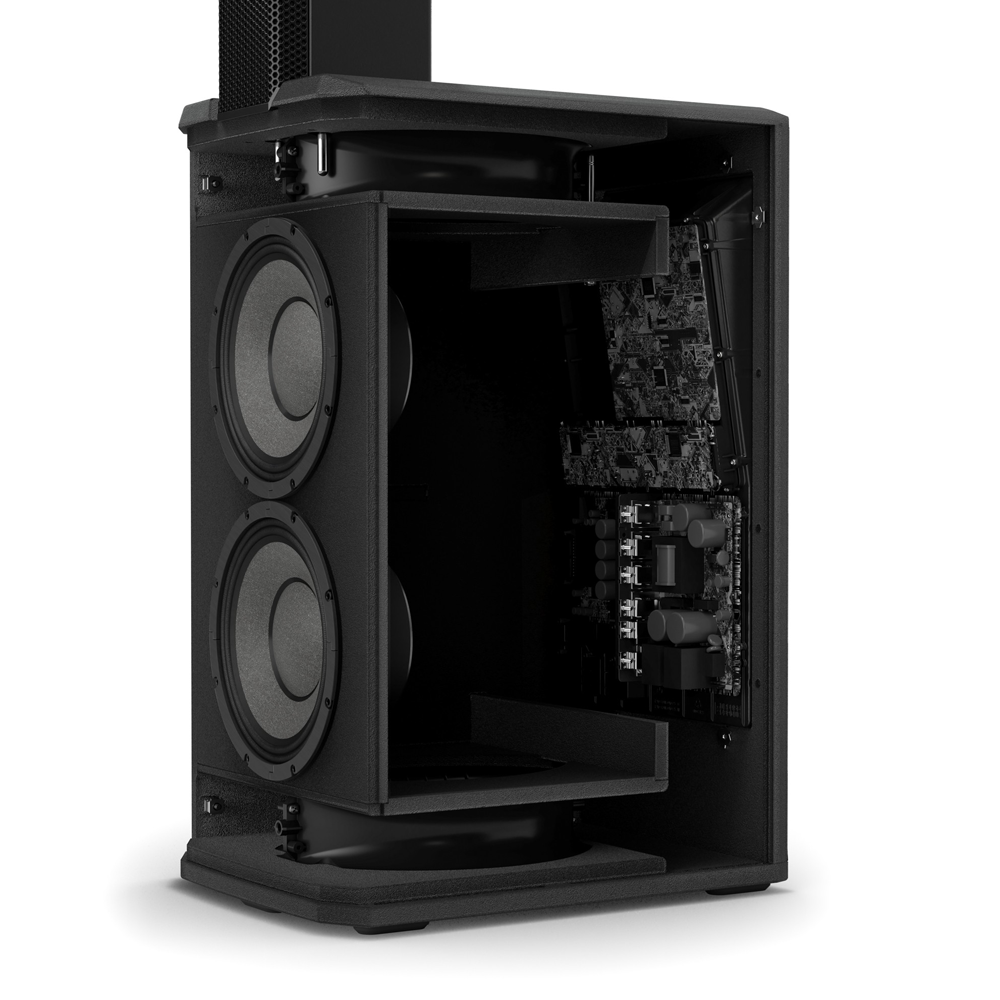

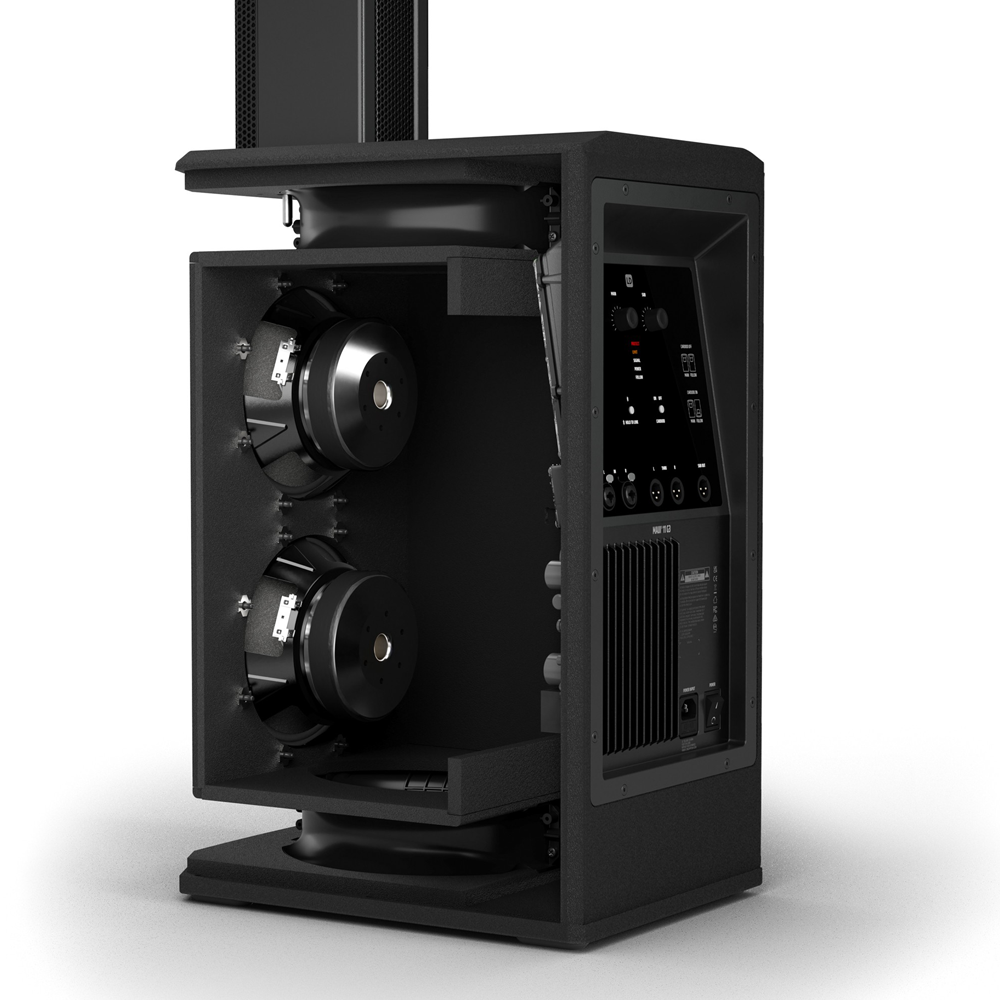

With the two larger 8″ chassis and the four bass reflex ports, the audibly more powerful subwoofer reproduces bass down to 39 Hz clearly and powerfully. When using a second subwoofer, the bass range can be amplified by 6 dB and converted to cardioid at the push of a button (preset). configuration. In addition, the extremely durable polyurea coating of the subwoofer can easily withstand even the toughest demands on the road.

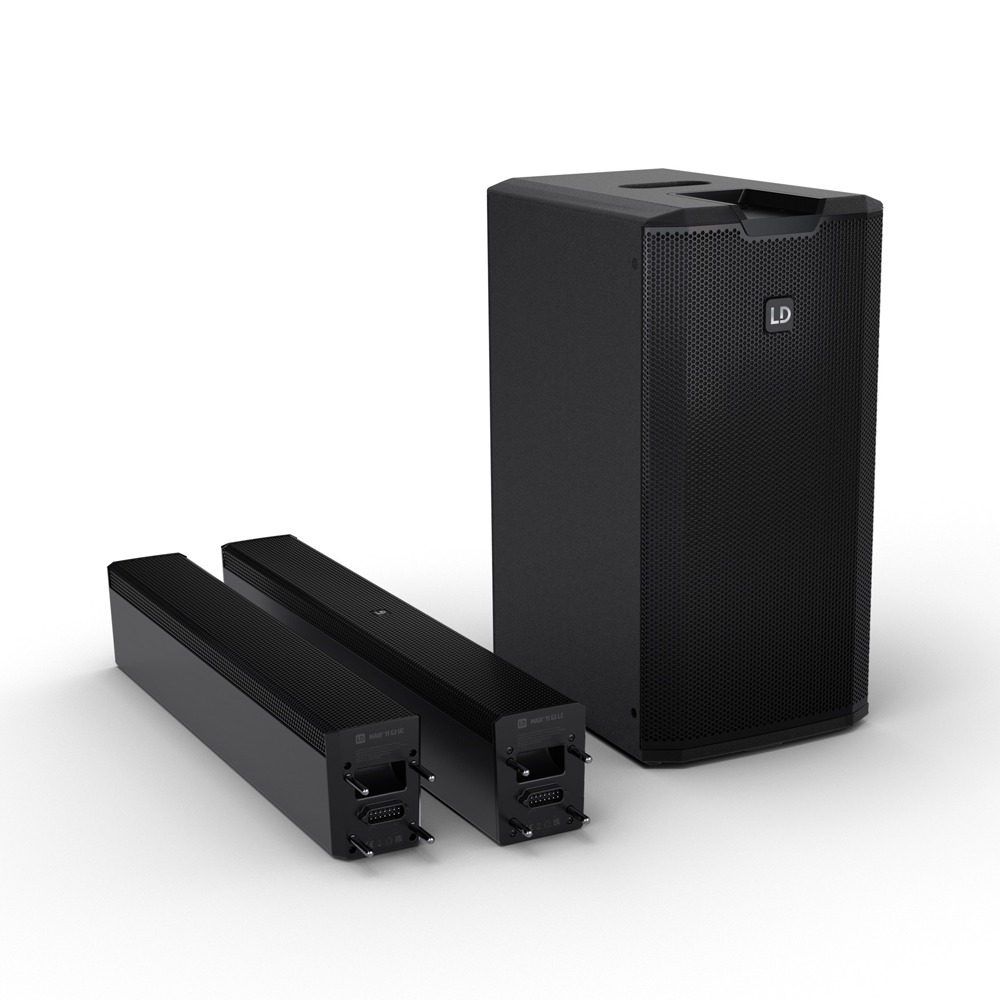

The MAUI 11 G3 is a real sound machine, but also impresses with its practical features in the everyday life of DJs, musicians and technicians. Thanks to Bluetooth 5.0, the column PA becomes a versatile sound system. Transport is as easy as usual, and the improved, invisible connectors between the elements offer increased stability during assembly – the MAUI can’t upset anything so easily.



  • 1460W peak power and 125dB max SPL
  • 2 x 8” subwoofers for powerful bass reproduction
  • 6 x 3.5” full-range speakers for balanced mids
  • 2 x 1” tweeter drivers for precise and silky highs
  • Cardioid column for controlled radiation in the low-mids and mids
  • BEM-optimized HF waveguide and phase plugs for homogeneous radiation behavior
  • Optimized bass reflex design for improved bass reproduction and reduced airflow noise
  • Combination with second MAUI® 11 G3 subwoofer for expanded low-end or cardioid subwoofer setup
  • New DynX® DSP (Gen.2) for distortion-free playback even at maximum volume
  • Wireless streaming via Bluetooth 5.0
  • Automatic setup recognition for uncomplicated operation

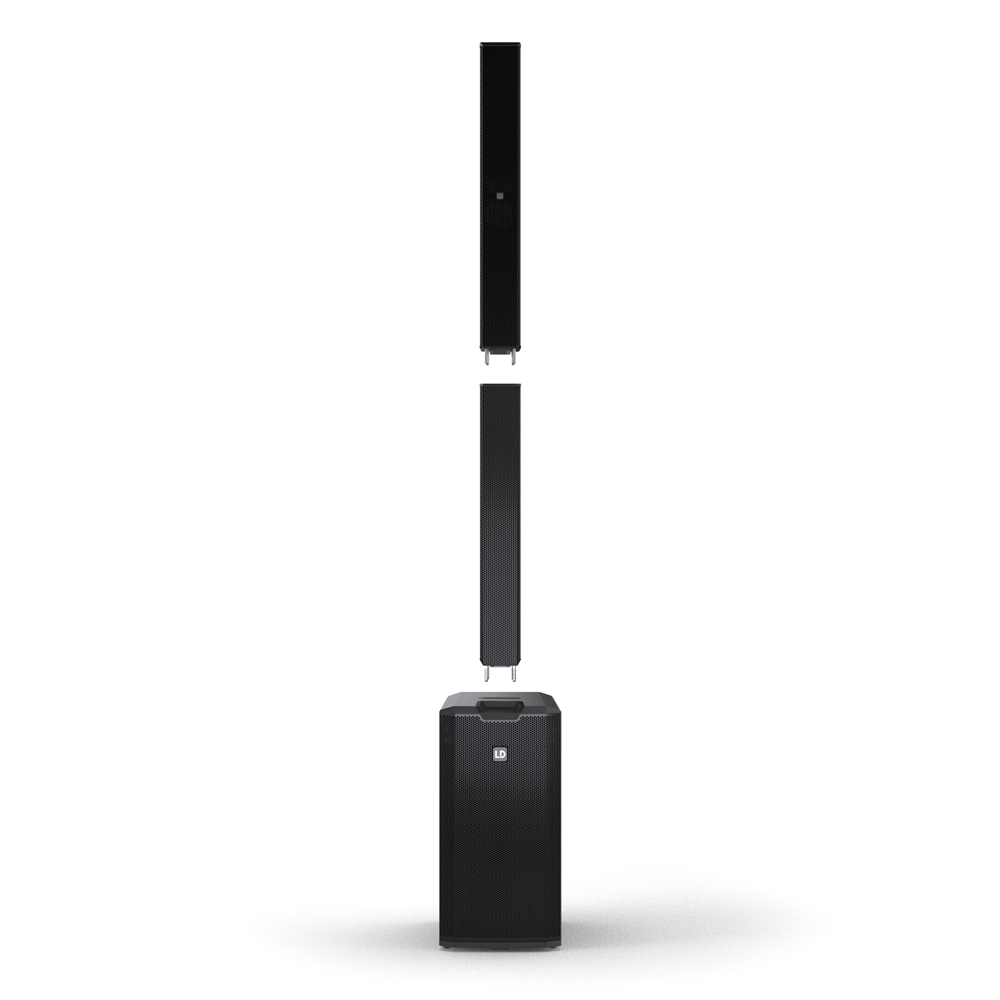

  • Quick and easy setup without tripods
  • Robust subwoofer housing made of birch multiplex with a durable polyurea coating
  • Columns made of lightweight aluminum with powder coating

Specifications

GENERAL
Product type PA Complete Systems
Type Active
Color Black
Max. SPL (Peak) 125 dB
Frequency response 39 Hz – 20 kHz
Dispersion (H x V) 120° x 30°
Overall height 2052 mm
Weight 30,7 kg
Key features Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Dispersion Behavior, Mono/Stereo Operation, Cardioid Column
Subwoofer
Low/mid woofer dimensions 2 x 8″”
Woofer dimensions 2 x 203 mm
Woofer magnet Ferrite
Woofer brand Custom Made
Woofer voice coil 2″”
Woofer voice coil 50,8 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Birch Plywood
Cabinet surface Polyurea
Subwoofer dimensions (W x H x d) 305 x 607 x 403 mm
Subwoofer weight 20,5 kg
Mid/Hi System
Midrange size 6 x 3,5″”
Midrange size 6 x 89 mm
Midrange magnet Ferrite
Midrange brand Custom Made
Midrange voice coil 0.75″”
Midrange voice coil 19 mm
Tweeter dimensions 2 x 0,5″”
Tweeter dimensions 2 x 12,7 mm
Tweeter magnet Neodym
Tweeter brand Custom Made
Tweeter voice coil 1 “”
Tweeter voice coil 25,4 mm
Horn CD Waveguide
Loudspeaker inputs 1
Speaker input connections Custom Made Multipin
Cabinet construction mid/high Passive Cardioid
Mid/Hi system cabinet material Aluminum
Mid/Hi system cabinet material surface Powder Coated Aluminum
Mid/Hi system width 103 mm
Mid/Hi system height 1460 mm
Mid/Hi system depth 135 mm
Mid/hi system weight 10,2 kg
Amplifier module (integrated in subwoofer)
Amplifier Class D
Amplifier output system (RMS) 700 W
Protection circuits DC Protection, Multiband Limiter, Short Circuit, Thermal Overload
Cooling Convection

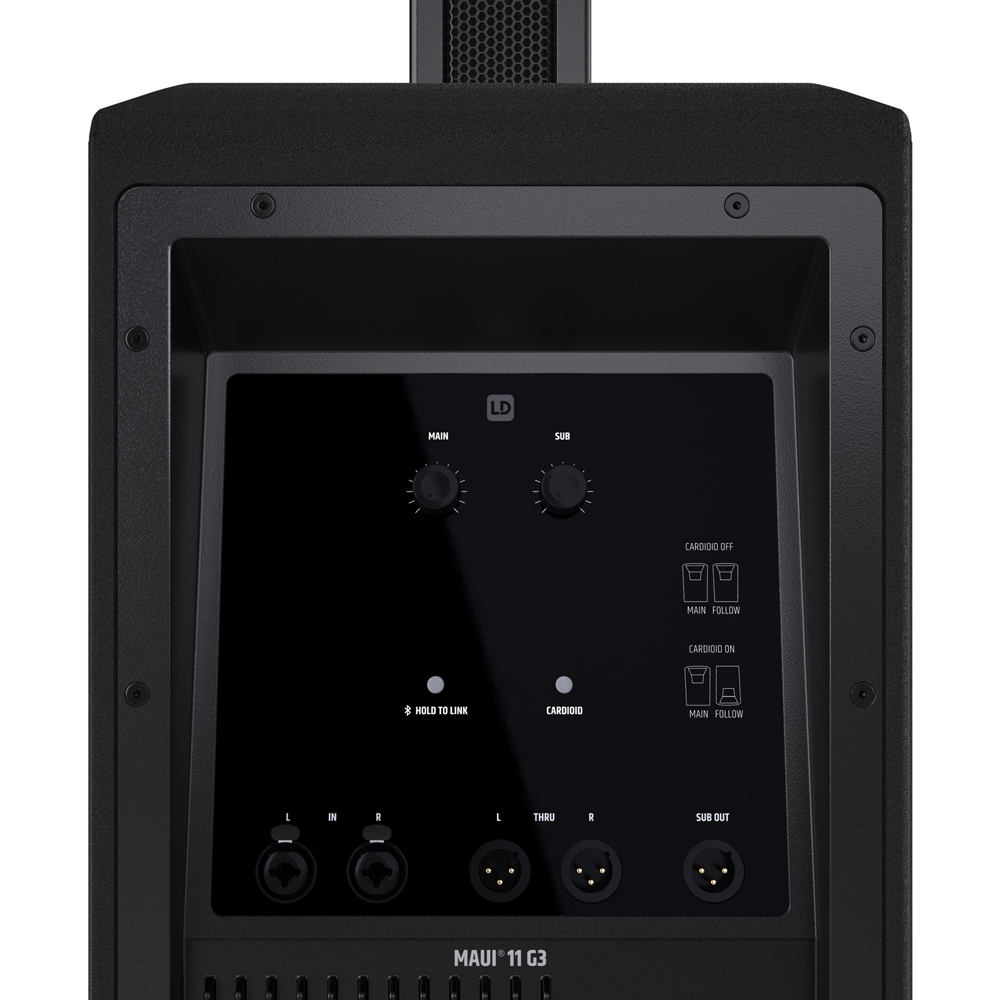

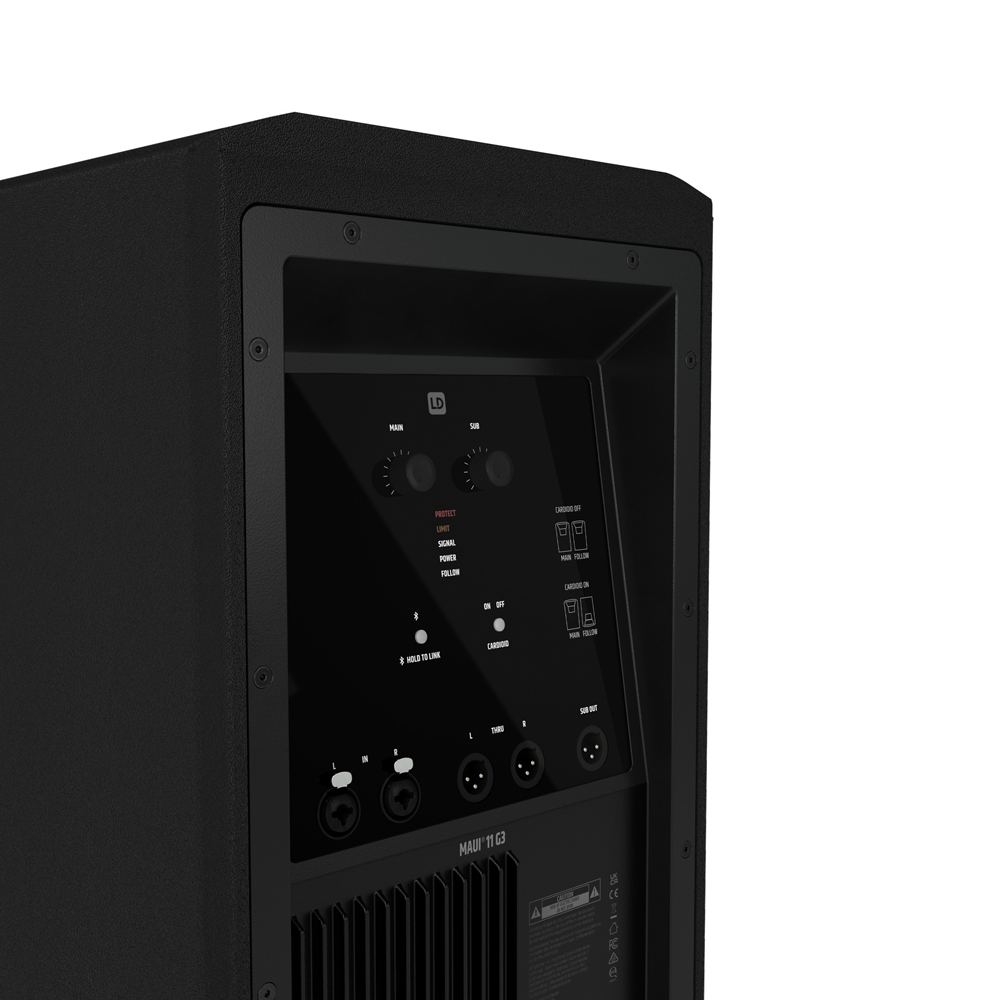

Controls Bluetooth HOLD TO LINK-Switch, Cardioid On/Off, Main Level, Power On/Off, Sub Level

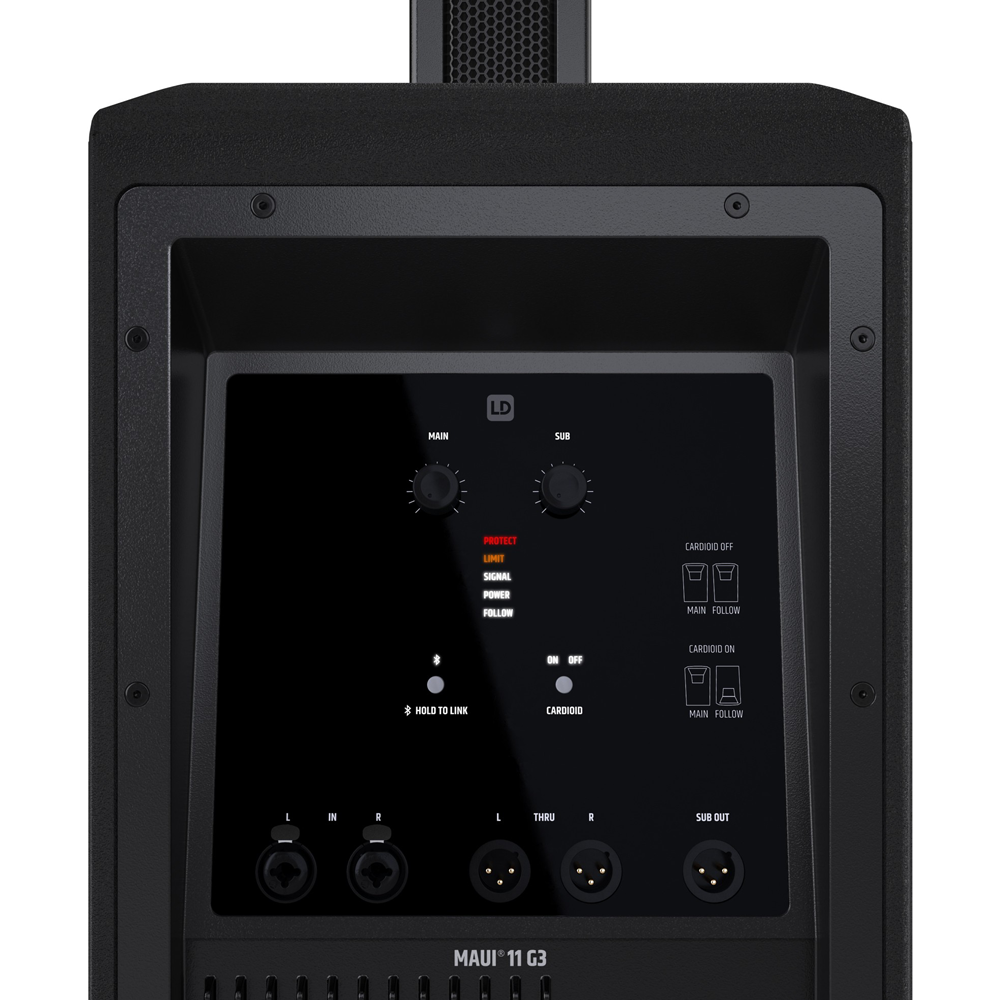

Indicators Bluetooth, Cardioid On/Off, Limit, Power, Protect (fuse active), Signal, Follower Mode, Subwoofer Mode
Power connector IEC Power Cable (included)
Operating voltage 100 V AC – 120 V AC / 50 – 60 Hz, 220 V AC – 240 V AC, 50 – 60 Hz
Fuse T3.15AL250V
Power consumption 300 W
Operating temperature 0 – 40 °C
Humidity range <80% (non condensing)
Line inputs 2
Line input connectors Combo XLR/TRS
Line outputs 1 Sub OUT, 2x THRU
Line output connectors XLR Male
Loudspeaker outputs 1
Speaker output connections Custom Made Multipin
Bluetooth-profile A2DP
Bluetooth-audio-decoder AAC, SBC
DSP characteristics
Bit depth AD/DA converter 24 Bit
Internal sampling frequency 48 kHz
