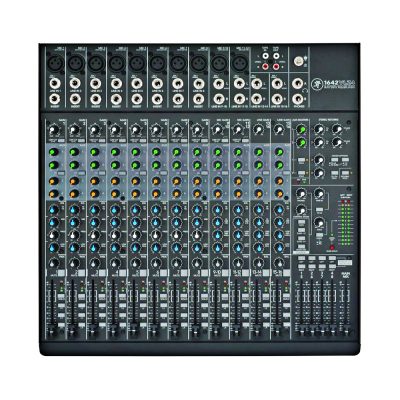

Mackie 1642VLZ4 – 16-Channel 4-Bus Compact Mixer

Description

The Mackie 1642VLZ4 is a 16-Channel 4-Bus Compact Mixer. It delivers the proven performance of Onyx preamps in a compact 4-bus mixer design, suitable for bands, clubs, and more. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.

Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like an expanded return section for no-hassle system integration and a dedicated control room section, the 1642VLZ4 16-Channel 4-Bus Compact Mixer is the go-to mixer choice for any application that demands flexibility and professional performance.

Features:

• 16-channel mixer featuring Mackie signature high-headroom/low-noise design
• 10 boutique-quality Onyx mic preamps
• Ultra-wide 60dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% (20Hz – 50kHz)
• Phantom power for studio condenser mics
• Improved RF rejection perfect for broadcast applications
• Phantom power for condenser mics
• 16 high-headroom line inputs with +4/-10 operation control
• 4 aux sends, level, pan and PFL solo on each channel
• 3-band EQ (80Hz, 2.5kHz, 12kHz)
• 18 dB/oct 75Hz low-cut filter on mic input channels
• 60mm long-wearing log-taper faders
• 4 stereo returns for connecting FX processor or other stereo source
• ALT 3/4 stereo bus for added routing flexibility
• Control room / phones source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary control resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
• Rack-mountable design using optional rack ear kit
• Multi-voltage power supply for worldwide use

Specifications:

Type Analog
Channels 16
Inputs – Mic Preamps 10 x XLR
Inputs – Line 16 x TRS (8 x mono, 4 x stereo pairs)
Inputs – Other 2 x RCA (tape)
Outputs – Main 2 x XLR, 2 x TRS (main), 1 x TRS (main mono)
Outputs – Direct 8 x TRS
Outputs – Other 2 x RCA (tape), 8 x TRS (bus), 2 x TRS (control room)
Headphones 2 x 1/4″
Send/Return I/O 4 x TRS (send), 8 x TRS (stereo returns)
Phantom Power 10 channels
EQ Bands 3-band
Aux Sends 2 x Pre/Post, 2 x Post
Busses/Groups 4 bus
Faders 17 x 60mm Throw
Channel Inserts Yes
Effects No effects
Talkback No talkback
Computer Connectivity No computer connectivity
Rackmountable Yes, via optional rack ear kit (sold separately)
Height 5.2″
Depth 16.7″
Width 16.6″
Manufacturer Part Number 2040766-00
