Description

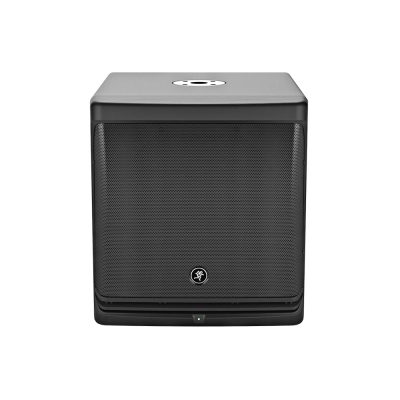

Mackie DLM12S

The Mackie DLM12S is a 12-Inch 2000-Watt Powered Subwoofer.

One of the most significant technological innovations of the DLM line is Mackie TruSource™ Technology. It’s a potent combination of a brand new, completely unique, transducer design and powerful proprietary digital signal processing. Both full-range models feature the extremely compact TruSource driver, which combines the high and low-frequency driver into a vertically-aligned, common-magnet design that is ultra-efficient and extremely capable. The sonic reproduction is incredibly transparent across the entire frequency range. DLM Series loudspeakers deliver unmatched fidelity

You can rely on the Mackie DLM12S powered subwoofer for thumping, powerful bass much more than you’d expect from its compact size. That’s because the DLM12S boasts 2,000 watts of Class D amplification, powering a custom-designed 12″ woofer with 3″ voice coil. And you’ll get a great sound fast because the DLM12S has presets specifically for use with Mackie DLM and SRM Series loudspeakers. But with a variable digital crossover, it’s easy to match with virtually any system too. For a powerful and portable bass reinforcement solution, the Mackie DLM12S powered subwoofer will exceed your expectations.

Features:

• 2000W power via ultra-efficient Class-D amplification
• High-power 12″, heat-treated woofer with 3″ voice coil
• Ultra-low frequency extension hits hard down to 35 Hz
• DLP Digital Processor
• Powerful, one-touch digital processor with bright OLED screen
• Precision digital crossover
• Presets for use with DLM and SRM Series full-range loudspeakers
• Variable crossover control for optimization with any loudspeaker
• Six total XLR connects for flexible I/O control
• Two line-level inputs
• Two full-range outputs for side fills, etc.
• Two high-pass outputs for direct connection to DLM loudspeakers
• Unmatched system control for professional applications
• Alignment delay up to 300ms for delay stack, balcony, etc.
• Three memory locations for instant venue setting recall
• Smart Protect DSP dynamically protects amp/driver
• Innovative ultra-compact design
• The highest-output compact subwoofer on the market
• Fit an entire DLM system in nearly any car
• Stack them up for storage
• Pole mount a DLM8 or DLM12
• Extremely durable 15mm poplar cabinet
• Rugged, powder-coated 20 gauge steel grille
• Ridiculously lightweight (48 lbs. / 21.7 kg)

Specifications:

• LF Driver Size 12″
• Power Amp 2000W
• Frequency Range 35Hz-120Hz (-10dB)
• Crossover Frequency 60Hz-120Hz
• Maximum Peak SPL 128 dB @ 1m
• Enclosure Material Poplar Plywood
• Mounting Options Floor, Fly
• Inputs 2 x XLR
• Outputs 2 x XLR (Full Range), 2 x XLR (High Pass)
• Height 17.9″
• Width 16.4″
• Depth 20.8″
• Weight 47 lbs.
• Manufacturer Part Number 2037880-00
