MG Electronics PHT-3 – Tweeter 3-1/8″ Square Piezo Horn

Description

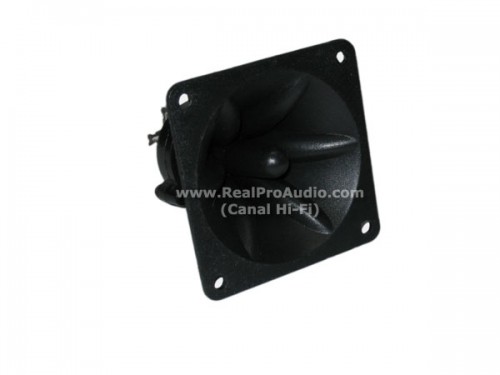

The MG Electronics PHT-3 is a Tweeter 3-1/8″ Square Piezo Horn.

Product Details:

Very commonly used tweeter in musical instrument, sound reinforcement and DJ speaker systems, it is also popular for use in carpeted automotive speaker boxes. Piezoelectric design offers excellent transient response, high efficiency and very high immunity to burnout. Very high impedance at low frequencies eliminates the need for a crossover, making this a very inexpensive and reliable tweeter to incorporate into any speaker system. It is perfect for direct incorporation into multi tweeter arrangements.

Specifications:

• Frequency response: 3KHz~30KHz
• Impedance: >20 @ 30KHz, >1K @1KHz
• Mounting flange dimensions:
• 33/8″ x 33/8″
• Required opening: 31/8″ diameter
• Depth: 3″
• Length: 3.50 in.
• Width: 3.50 in.
• Weight: 0.12 lbs.
