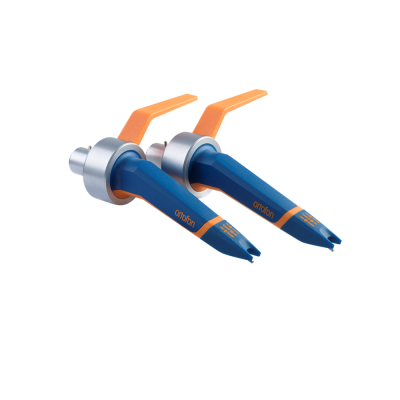

Ortofon DJ Concorde Mk II DJ Twin – Turntable Cartridge and Stylus

Description

The Ortofon Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling.

Features:

• The DJ is great for any style of music.
• It has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity.
• Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

All in all: improved tracking, alongside of accurate sound reproduction and an excellent groove handling.

Specifications:

Stylus Type: Spherical
Tracking Force: 4.0 g
Output Voltage: 6 mV
Frequency Range: 20-20.000 Hz

Technical Data:

Output voltage at 1000Hz, 5cm/sec. – 6 mV
Channel balance at 1kHz – 1 dB
Channel separation at 1kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force – 100 μm
Compliance, dynamic lateral – 14 μm/m N
Stylus type – Spherical R 18 μm
Tracking force range – 3 – 5 g
Tracking force recommended – 4 g
Cartridge weight – 18,5 g
Replacement stylus unit – DJ
